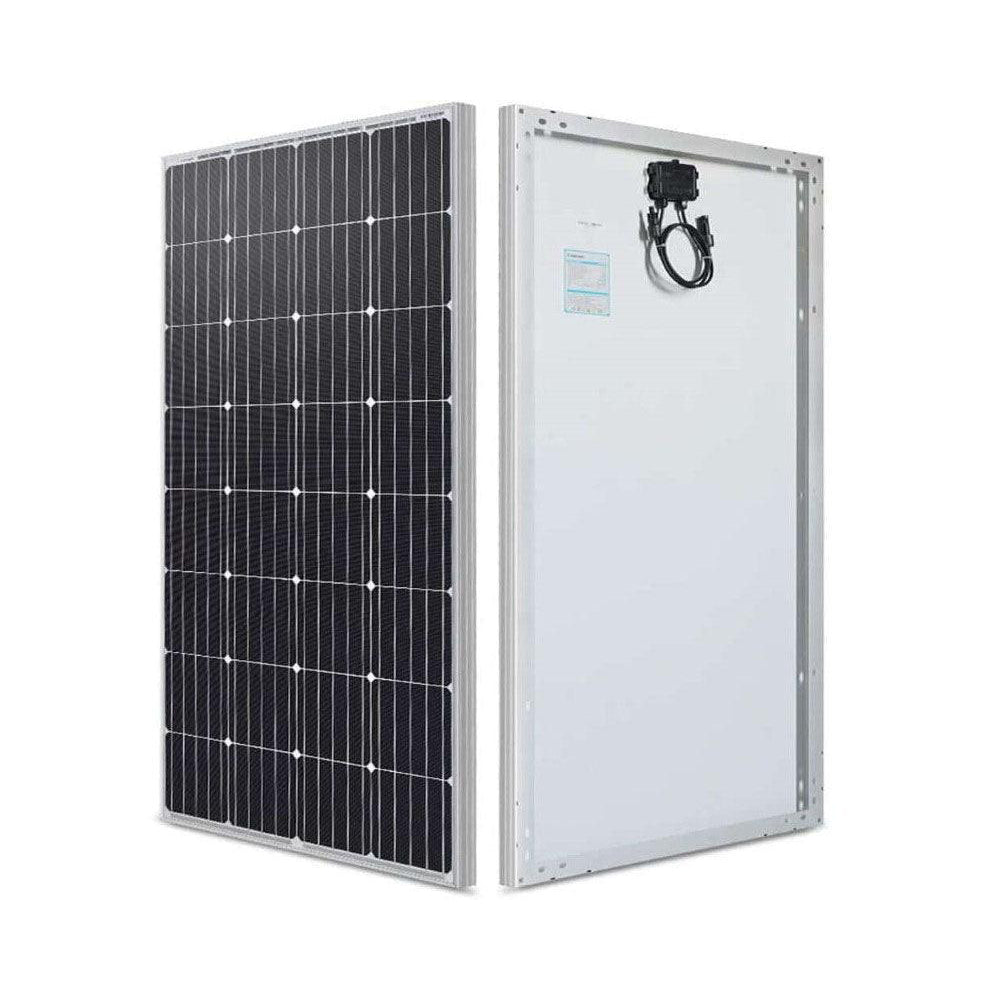

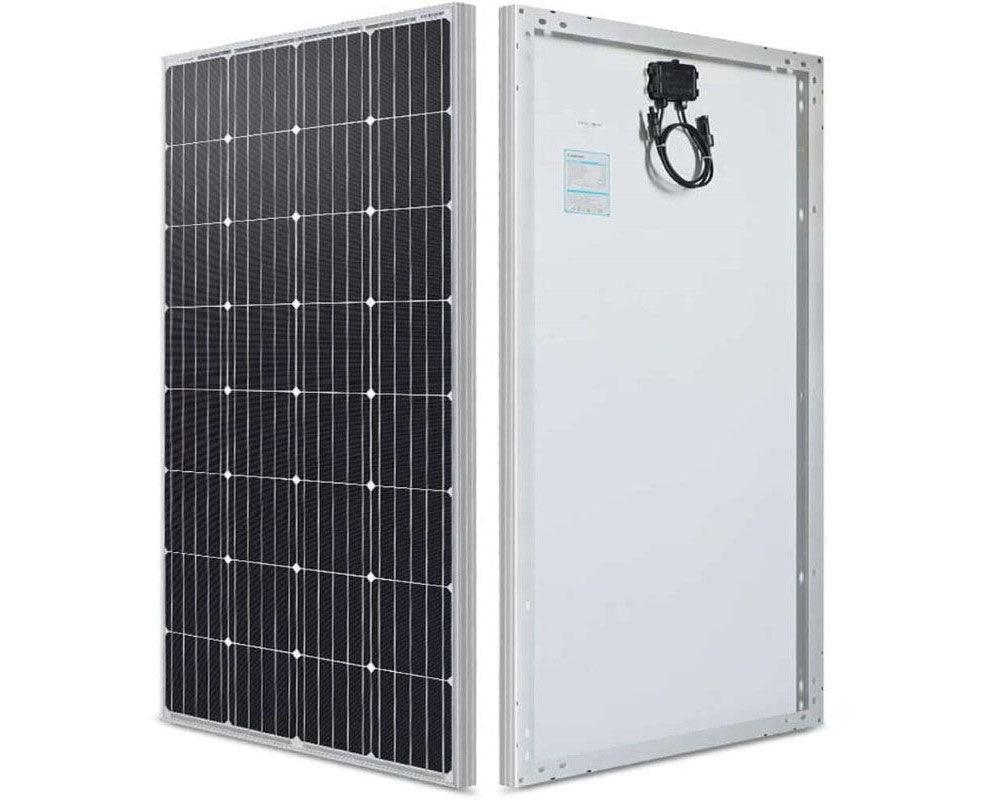

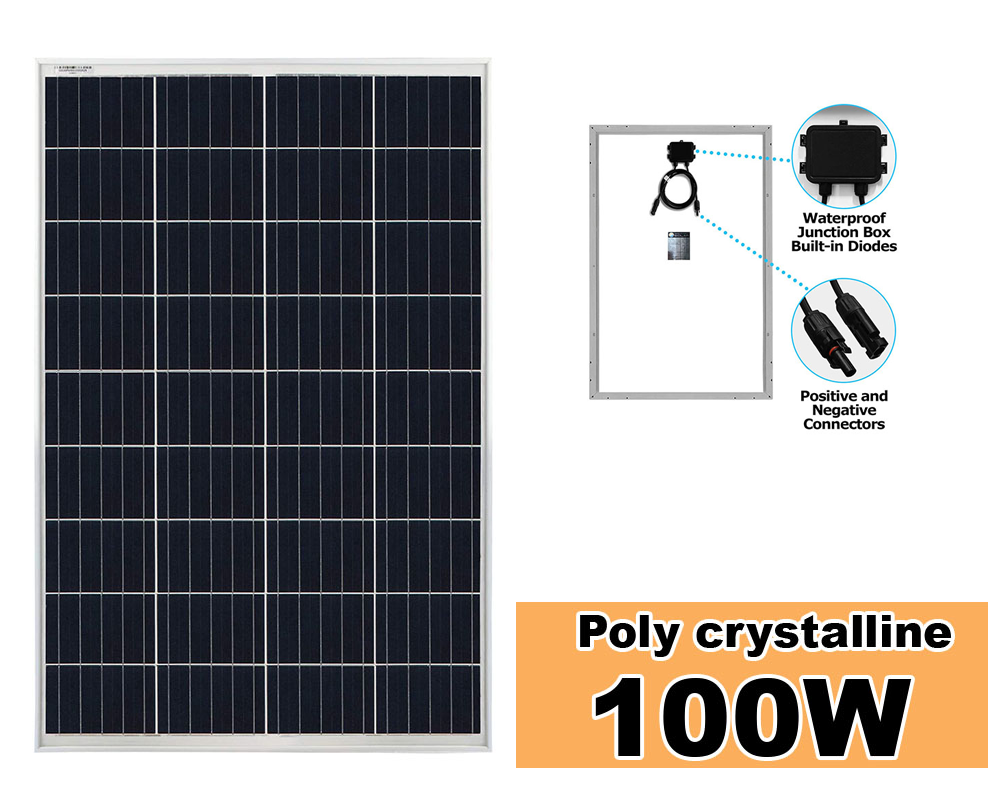

100W Poly-crystalline Solar Panel
Power your renewable energy systems with our reliable 100W Poly-crystalline Solar Panel. Crafted with high-efficiency A-grade Trinasolar® cells and durable materials, it ensures maximum light absorption and long-lasting performance.
Key Features:
- High-efficiency A-grade Trinasolar® cells
- 3.2mm safety/tempered glass front for maximum light absorption
- Low-iron content glass for enhanced transparency and solar production
- Corrosion-resistant anodized aluminum frame for strength and easy mounting
- Weather-tight seal junction box with Ingress Protection rating of 65
- Built-in bypass diode for added protection during partial shading
- Supplied with 900mm cable and standard MC4 connectors
- Complies with international test standards IEC61215, IEC61730-1, and IEC61730-2
- Class-C fire rating as per AS/NZS5033:2014
- Designed to retain 80% of original power output after 25 years
Specifications:
- Maximum Power (Pmax): 100W
- Maximum Power Voltage (Vmpp): 18.3V
- Maximum Power Current (Impp): 5.56A
- Open Circuit Voltage (Voc): 21.8V
- Short Circuit Current (Isc): 6.06A
- Power Tolerance: 3%
- Cell Efficiency: 20.60%
- Module Efficiency STC: 18.40%
- Operating Temperature Range: -40°C - +85°C
- Number of Cells: 36
- Cell Type: Trinasolar®
- Maximum System Voltage: 1000V
- Dimensions: 1196mm x 540mm x 35mm
- Weight: 8kgs
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
- Normal Operating Cell Temperature: 47°C +/- 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Warranty: 10 Years
- Application Class: Class A
- Fire Rating: Class C
Packaging Contains:
- 1 x Solar Panel
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Customer Reviews
Based on 4 reviews
Write a review
Description
100W Poly-crystalline Solar Panel
Power your renewable energy systems with our reliable 100W Poly-crystalline Solar Panel. Crafted with high-efficiency A-grade Trinasolar® cells and durable materials, it ensures maximum light absorption and long-lasting performance.
Key Features:
- High-efficiency A-grade Trinasolar® cells
- 3.2mm safety/tempered glass front for maximum light absorption
- Low-iron content glass for enhanced transparency and solar production
- Corrosion-resistant anodized aluminum frame for strength and easy mounting
- Weather-tight seal junction box with Ingress Protection rating of 65
- Built-in bypass diode for added protection during partial shading
- Supplied with 900mm cable and standard MC4 connectors
- Complies with international test standards IEC61215, IEC61730-1, and IEC61730-2
- Class-C fire rating as per AS/NZS5033:2014
- Designed to retain 80% of original power output after 25 years
Specifications:
- Maximum Power (Pmax): 100W
- Maximum Power Voltage (Vmpp): 18.3V
- Maximum Power Current (Impp): 5.56A
- Open Circuit Voltage (Voc): 21.8V
- Short Circuit Current (Isc): 6.06A
- Power Tolerance: 3%
- Cell Efficiency: 20.60%
- Module Efficiency STC: 18.40%
- Operating Temperature Range: -40°C - +85°C
- Number of Cells: 36
- Cell Type: Trinasolar®
- Maximum System Voltage: 1000V
- Dimensions: 1196mm x 540mm x 35mm
- Weight: 8kgs
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
- Normal Operating Cell Temperature: 47°C +/- 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Warranty: 10 Years
- Application Class: Class A
- Fire Rating: Class C
Packaging Contains:
- 1 x Solar Panel
