Solar Panel 150W High-Quality Polycrystalline Silicon Solar Cell
Solar Panel 150W High-Quality Polycrystalline Silicon Solar Cell
Experience efficient and reliable energy production with the Solar Panel 150W. Crafted with high-quality polycrystalline silicon solar cells, this solar panel offers exceptional performance and durability, making it ideal for various applications.
Features:
- 0 - +3% positive tolerance for mainstream
- Withstands wind loads and snow loads (5400Pa)
- Anti-reflective, highly transparent, low iron tempered glass
- Transmission rate: 3.18%
Specifications:
- Max Power (Pmax): 150W
- Optimum Operating Voltage (Vm): 17.8V
- Optimum Operating Current (Im): 8.43A
- Open Circuit Voltage (Voc): 22.15V
- Short-Circuit Current (Isc): 8.93A
- Cell Efficiency: 17.10%
- Module Efficiency: 15.37%
- Solar Cell: Polycrystalline
- Output Tolerance (Pmax): 0 - 3%
- Temperature Cycling Range: 40 - 85 Degrees Celsius
- NOCT: 47+/- 2 Degrees Celsius
- Temperature Coefficients of Isc: +(0.053+/- 0.01)%/K
- Temperature Coefficients of Voc: -(0.35+/- 0.01)%/K
- Temperature Coefficients of Pmax: -(0.40+/- 0.05)%/K
- Dimensions (HxWxD): 1482mm x 670mm x 35mm

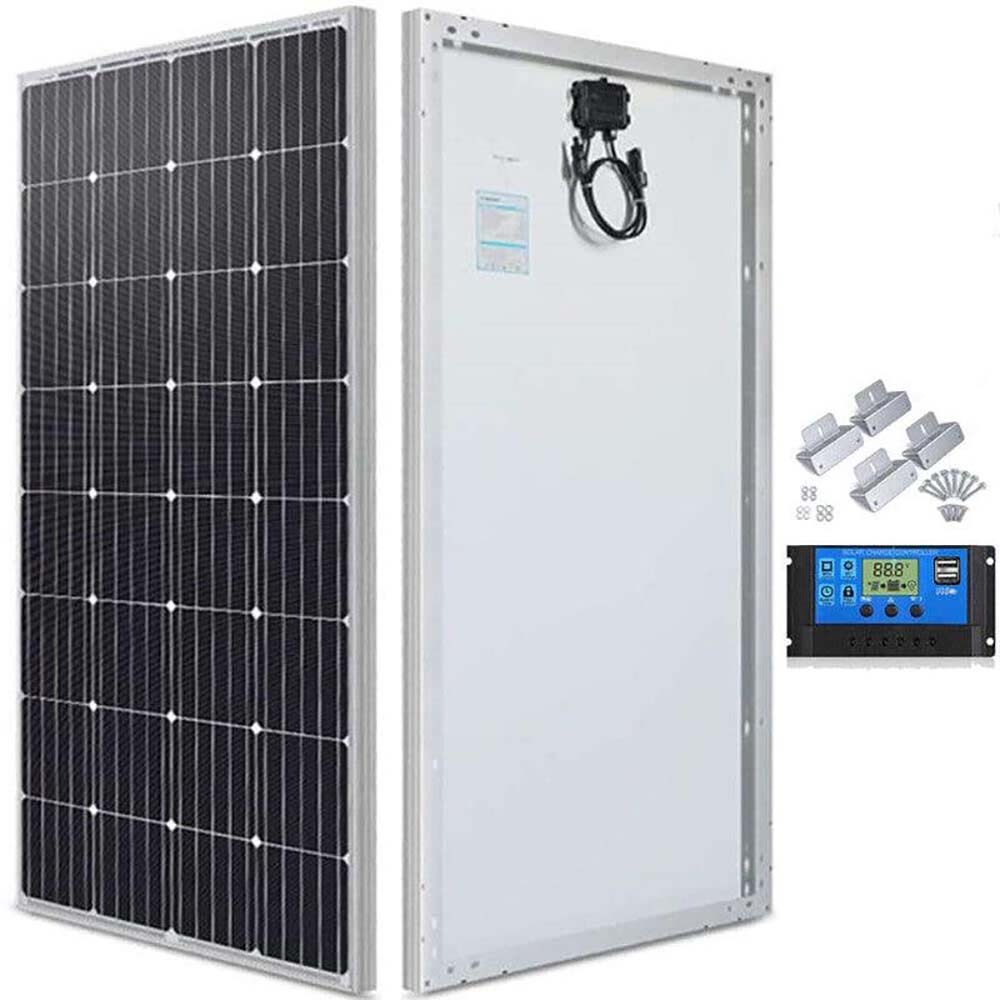

Packaging:
- 1 x 150W Solar Panel
- 1 x Solar Controller
- 1 x Solar Panel Mount
Maximize your energy efficiency with the Solar Panel 150W. Whether for residential or commercial use, this solar panel provides reliable performance and long-lasting durability.
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
Solar Panel 150W High-Quality Polycrystalline Silicon Solar Cell
Solar Panel 150W High-Quality Polycrystalline Silicon Solar Cell
Experience efficient and reliable energy production with the Solar Panel 150W. Crafted with high-quality polycrystalline silicon solar cells, this solar panel offers exceptional performance and durability, making it ideal for various applications.
Features:
- 0 - +3% positive tolerance for mainstream
- Withstands wind loads and snow loads (5400Pa)
- Anti-reflective, highly transparent, low iron tempered glass
- Transmission rate: 3.18%
Specifications:
- Max Power (Pmax): 150W
- Optimum Operating Voltage (Vm): 17.8V
- Optimum Operating Current (Im): 8.43A
- Open Circuit Voltage (Voc): 22.15V
- Short-Circuit Current (Isc): 8.93A
- Cell Efficiency: 17.10%
- Module Efficiency: 15.37%
- Solar Cell: Polycrystalline
- Output Tolerance (Pmax): 0 - 3%
- Temperature Cycling Range: 40 - 85 Degrees Celsius
- NOCT: 47+/- 2 Degrees Celsius
- Temperature Coefficients of Isc: +(0.053+/- 0.01)%/K
- Temperature Coefficients of Voc: -(0.35+/- 0.01)%/K
- Temperature Coefficients of Pmax: -(0.40+/- 0.05)%/K
- Dimensions (HxWxD): 1482mm x 670mm x 35mm
Packaging:
- 1 x 150W Solar Panel
- 1 x Solar Controller
- 1 x Solar Panel Mount
Maximize your energy efficiency with the Solar Panel 150W. Whether for residential or commercial use, this solar panel provides reliable performance and long-lasting durability.
