Barn Door Hardware - Black Steel I-Shaped Rollers
Barn Door Hardware

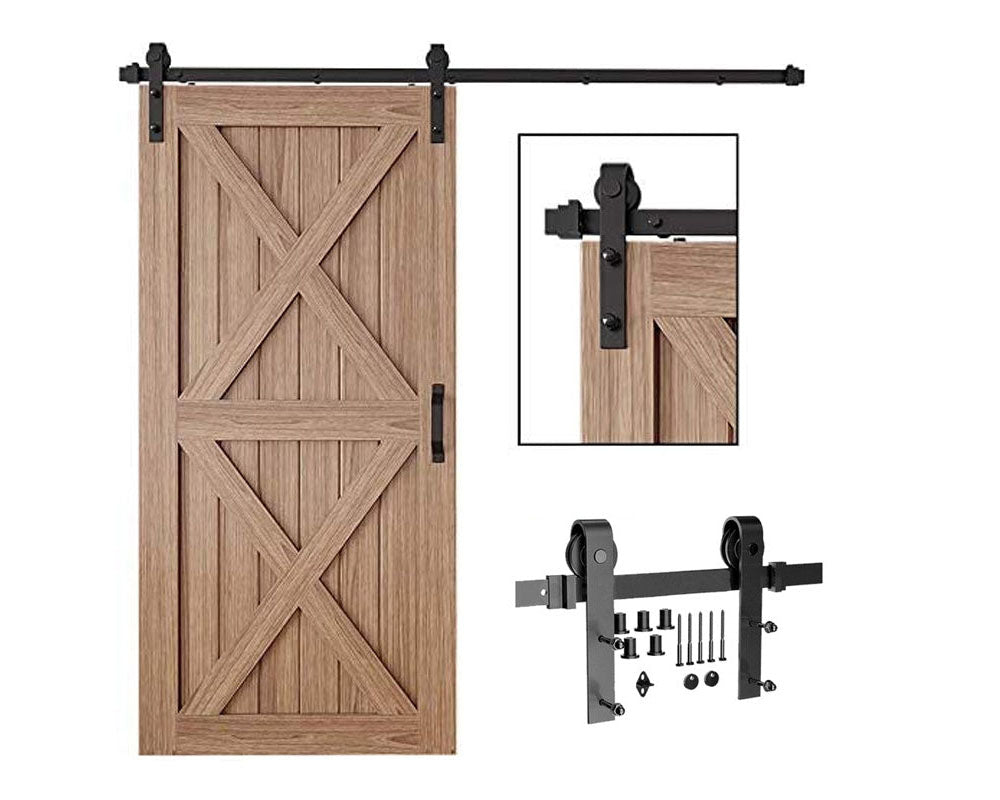

2.5m Black Steel I-Shaped Rollers Track Rail Bypass Sliding Barn Door Hardware Kit
This comprehensive hardware kit is designed for both single and double bypass barn doors, offering durability and reliability for a variety of interior spaces.
Specifications:
-
Material: High-quality raw steel castings with a track thickness of 6mm.
-
Maximum Load: 330 pounds.
-
Suitable Door Panel Thickness: 4-4.5 cm.
Installation Requirements:
-
Ceiling to Top of Door Distance: 16 cm.
-
Baseboard Thickness: 2 cm.
-
Wall Type: Designed for installation on solid brick walls capable of bearing weight.
-
Door Thickness: 4-4.5 cm.
Track Length Calculation:
Single Door: Track length = Door width x 2 + 10 cm or Opening width x 2 + 20 cm.
Double Door: Track length = Door width x 4 + 20 cm or Opening width x 2 + 20 cm.
High-Quality Features:
-
Anti-Sway Device: Includes a device to stabilize the doors.
-
Material: High-quality anti-sway device made from POM material.
Package Contains:
- 1 x Barn Door Hardware Set
- 1 x Instruction Manual
- Classic hanging wheel: thickness 6mm, width 40mm, hole pitch 90mm, length 290mm, single wheel with 2 M10 x 60 screws
- Carbon steel track: fine sand sprayed, thickness 6 mm, width 40 mm
- Self-tapping screws: M8 x 100
- Anti-jump piece: POM material, includes 2 M4 x 25 screws
- Stopper: POM material, includes 2 M4 x 25 screws, 2 plastic expansion tubes
