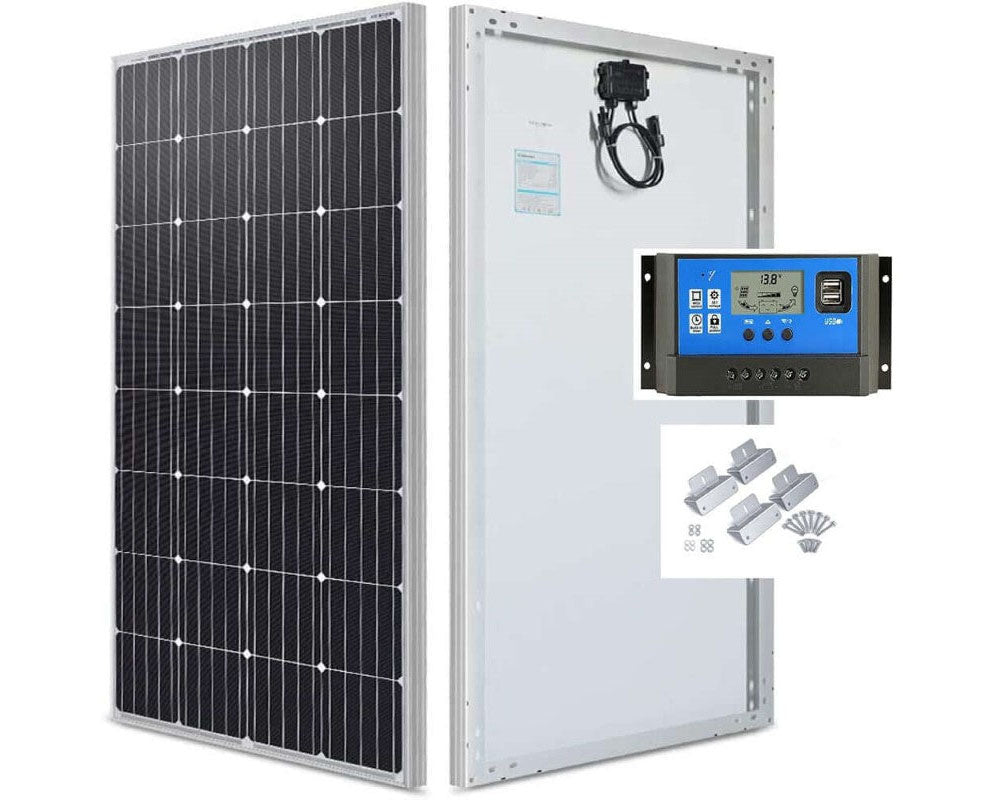

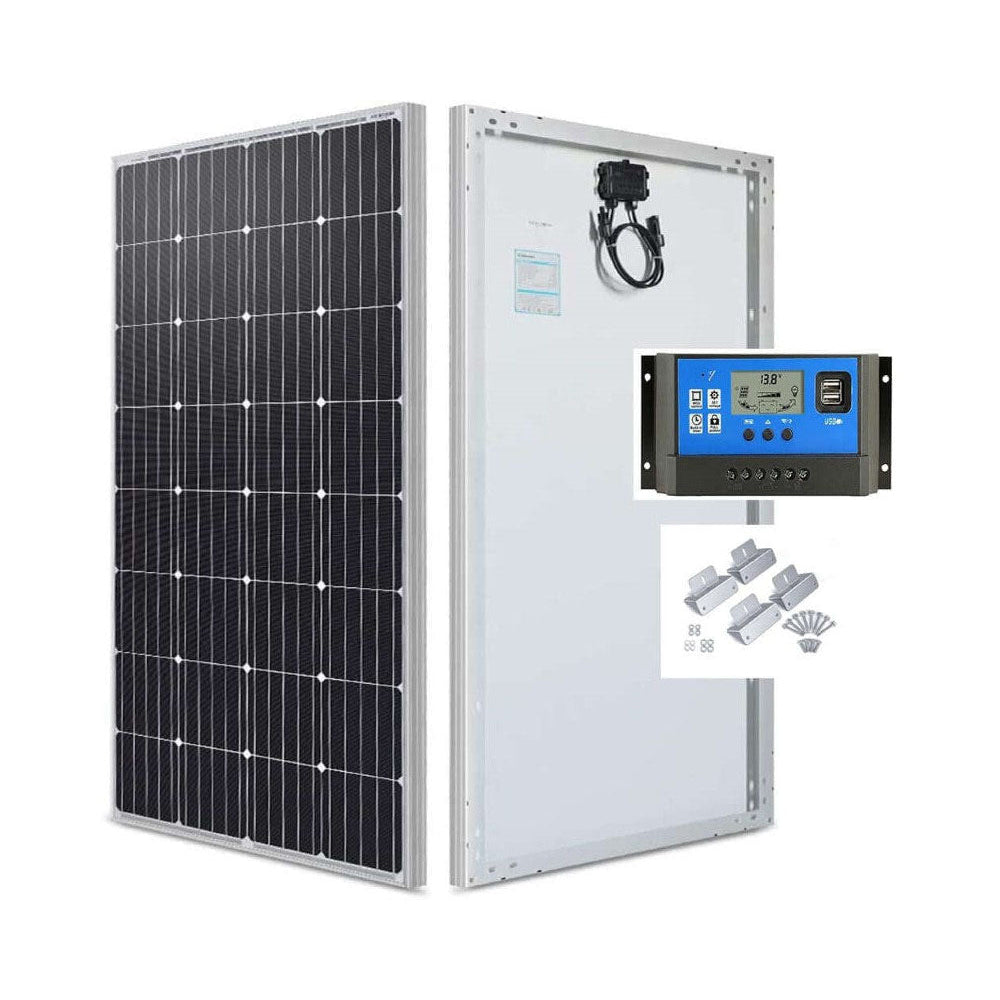

150W Mono-Crystalline Solar Panel with High Efficiency Trinasolar® Cells and 50A Solar Controller

Experience superior energy conversion with the 150W Mono-Crystalline Solar Panel, featuring top-grade Trinasolar® cells. Designed for durability and efficiency, this solar panel comes with a weather-tight junction box and standard MC4 connectors, making it an ideal choice for a variety of solar applications.

Key Features:

High-Efficiency Trinasolar® Cells: Built with A-grade mono-crystalline Trinasolar® cells, this panel ensures optimal performance and energy output.
Weather-Tight Junction Box: The IP65-rated junction box provides a secure seal against the elements and includes a built-in bypass diode for added protection against partial shading.
Standard MC4 Connectors: Supplied with 900mm of cable for both positive and negative connections, complete with MC4 connectors crimped for easy installation.
Durable Construction: Features 3.2mm tempered glass and a heavy-duty aluminum frame, designed to withstand wind loads of up to 2400Pa and snow loads of up to 5400Pa.

Specifications:

Maximum Power (Pmax): 150W
Material: Mono-Crystalline
Voltage Range: 12V to 18V
Open Circuit Voltage (Voc): 22.65V
Short Circuit Current (Isc): 9.06A
Rated Current (Imp): 8.36A
Cell Efficiency: 20.50%
Module Efficiency: 18.47% (STC)
Operating Temperature Range: -40°C to +85°C
Dimensions: 1480mm x 680mm x 40mm
Weight: 12 kg
Temperature Coefficient of Pmax: -0.435%/°C
Temperature Coefficient of Voc: -0.35%/°C
Temperature Coefficient of Isc: +0.043%/°C
Normal Operating Cell Temperature (NOCT): 47°C ± 2°C
Maximum System Voltage: 1000V
Wind Load: 2400Pa
Snow Load: 5400Pa
Application Class: Class A
Fire Rating: Class C

Packaging Content:

1 x High-Efficiency 150W Solar Panel
1 x 50A Solar Controller

Shipping	This item ships to
Delivery	Estimated between and . Will usually ship within 1 business day.

Description

150W Mono-Crystalline Solar Panel with High Efficiency Trinasolar® Cells and 50A Solar Controller

Key Features:

High-Efficiency Trinasolar® Cells: Built with A-grade mono-crystalline Trinasolar® cells, this panel ensures optimal performance and energy output.
Weather-Tight Junction Box: The IP65-rated junction box provides a secure seal against the elements and includes a built-in bypass diode for added protection against partial shading.
Standard MC4 Connectors: Supplied with 900mm of cable for both positive and negative connections, complete with MC4 connectors crimped for easy installation.
Durable Construction: Features 3.2mm tempered glass and a heavy-duty aluminum frame, designed to withstand wind loads of up to 2400Pa and snow loads of up to 5400Pa.
