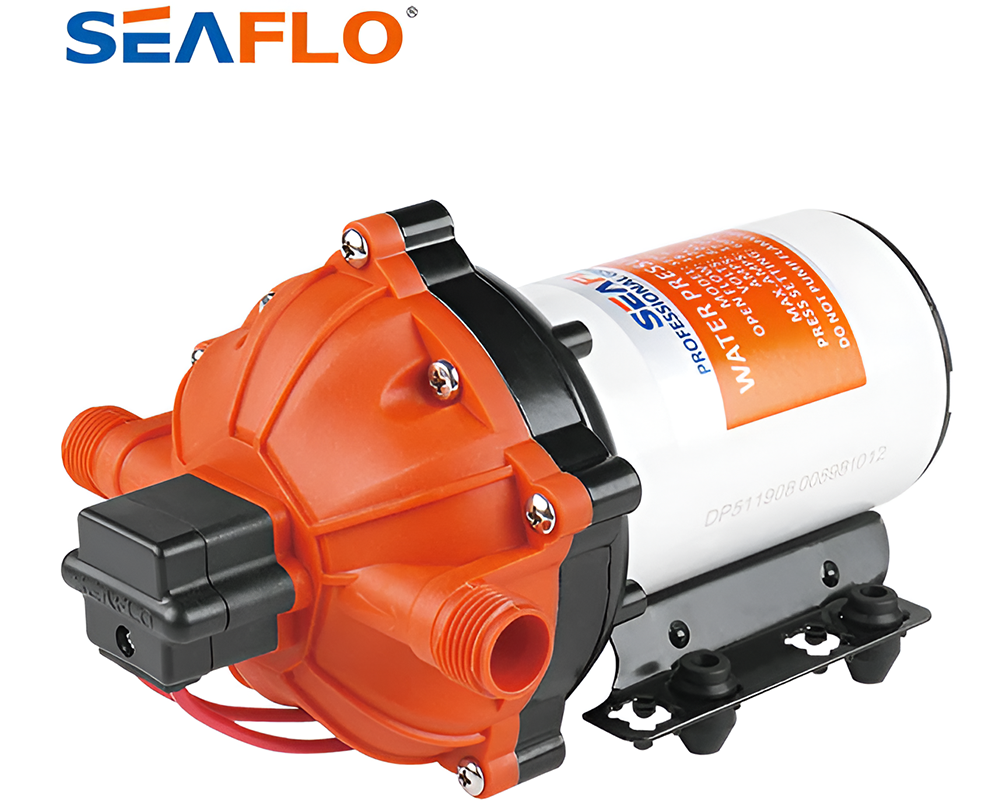

SEAFLO Water Pump SFDP1-050-060-51 – 60PSI Diaphragm Pump, Automatic Demand, 12V
The SEAFLO Water Pump SFDP1-050-060-51 is a high-performance 51 Series automatic diaphragm pump designed for marine, RV, cabin, and industrial water systems. Delivering up to 5.0 gallons per minute, the SEAFLO Water Pump SFDP1-050-060-51 provides precise pressure control, low pump cycling, and reliable operation even without an accumulator tank. With its five-chamber diaphragm design, this SEAFLO Water Pump SFDP1-050-060-51 can support up to five fixtures simultaneously, making it ideal for a wide range of applications.
Features
-
High-Flow Diaphragm Pump: Supplies up to 5.0 GPM for fresh or saltwater use, perfect for the SEAFLO Water Pump SFDP1-050-060-51.
-
Automatic Demand Operation: Built-in pressure switch starts and stops the SEAFLO Water Pump SFDP1-050-060-51 automatically when faucets are opened or closed.
-
Durable & Reliable: Waterproof, dustproof, low current draw, and can run dry without damage, making the SEAFLO Water Pump SFDP1-050-060-51 highly dependable.
-
Versatile Applications: Ideal for boats, RVs, cabins, agricultural spraying, beverage processing, and solar water systems using the SEAFLO Water Pump SFDP1-050-060-51.
-
Easy Installation & Maintenance: Lightweight, 12V operation, self-priming, and simple to service.
Specifications
-
Pump Type: 5-chamber positive displacement diaphragm pump
-
Control Type: Pressure switch
-
Max Temperature: 60°C / 140°F
-
Priming: 6 ft (1.8 m) suction lift
-
Re-start Pressure: Shut-on 20 PSI ±3 PSI / Shut-off 60 PSI ±3 PSI
-

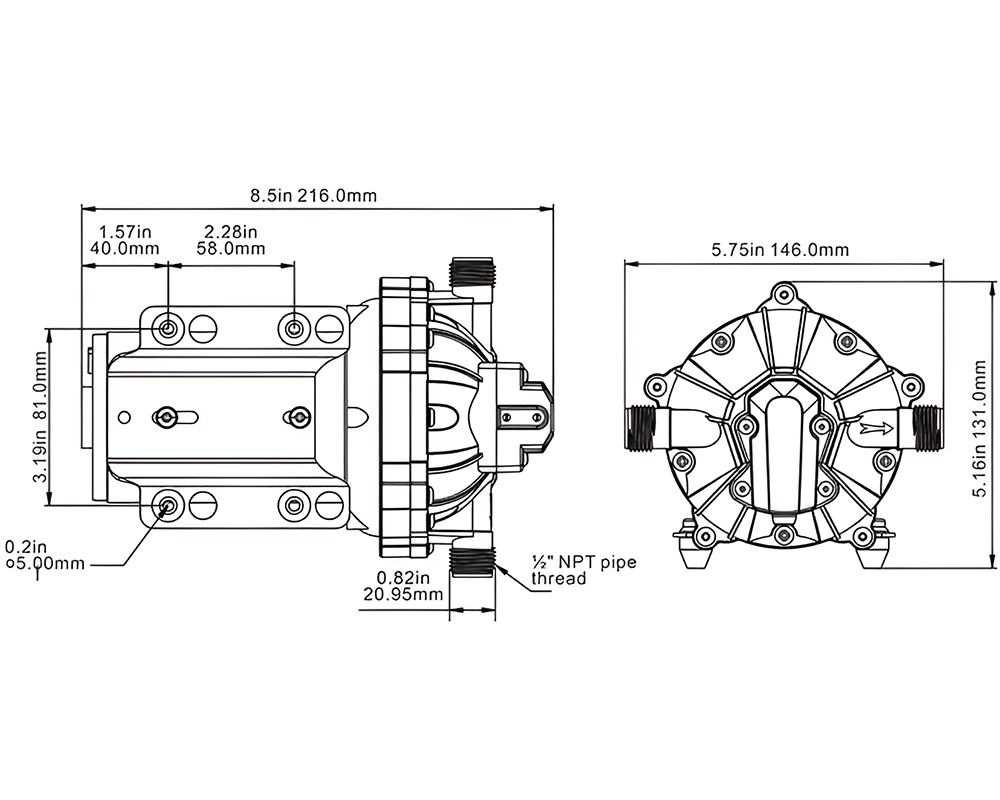

Inlet/Outlet Ports: 1/2"-14 MNPT
-
Weight: 2.8 kg
Motor Specifications
-
Voltage: 12V DC
-
Open Flow: 5.0 GPM / 18.9 LPM
-
Max Amp Draw: 15A
-
Duty Cycle: Continuous
-
Fuse: 25.5A
-
Leads: 14 AWG, 33 cm with 2-pin connector

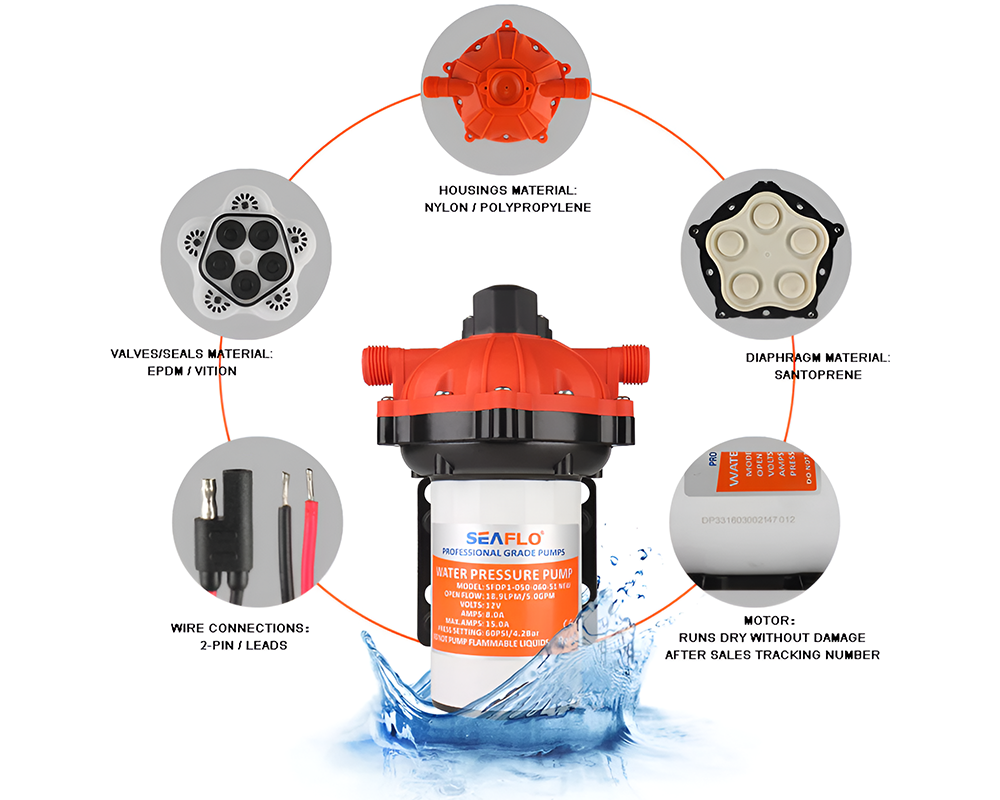

Materials
-
Diaphragm: Santoprene
-
Valves: EPDM
-
Ports: 1/2"-14 MNPT
Package Includes
- 1 × SEAFLO Water Pump SFDP1-050-060-51 – 60PSI Automatic Diaphragm Pump
The SEAFLO Water Pump SFDP1-050-060-51 is the ultimate solution for reliable water delivery in marine, RV, cabin, or industrial applications. Its high flow rate, automatic demand operation, and durable design make the SEAFLO Water Pump SFDP1-050-060-51 an essential component for any water system requiring efficiency, consistency, and long-lasting performance.
