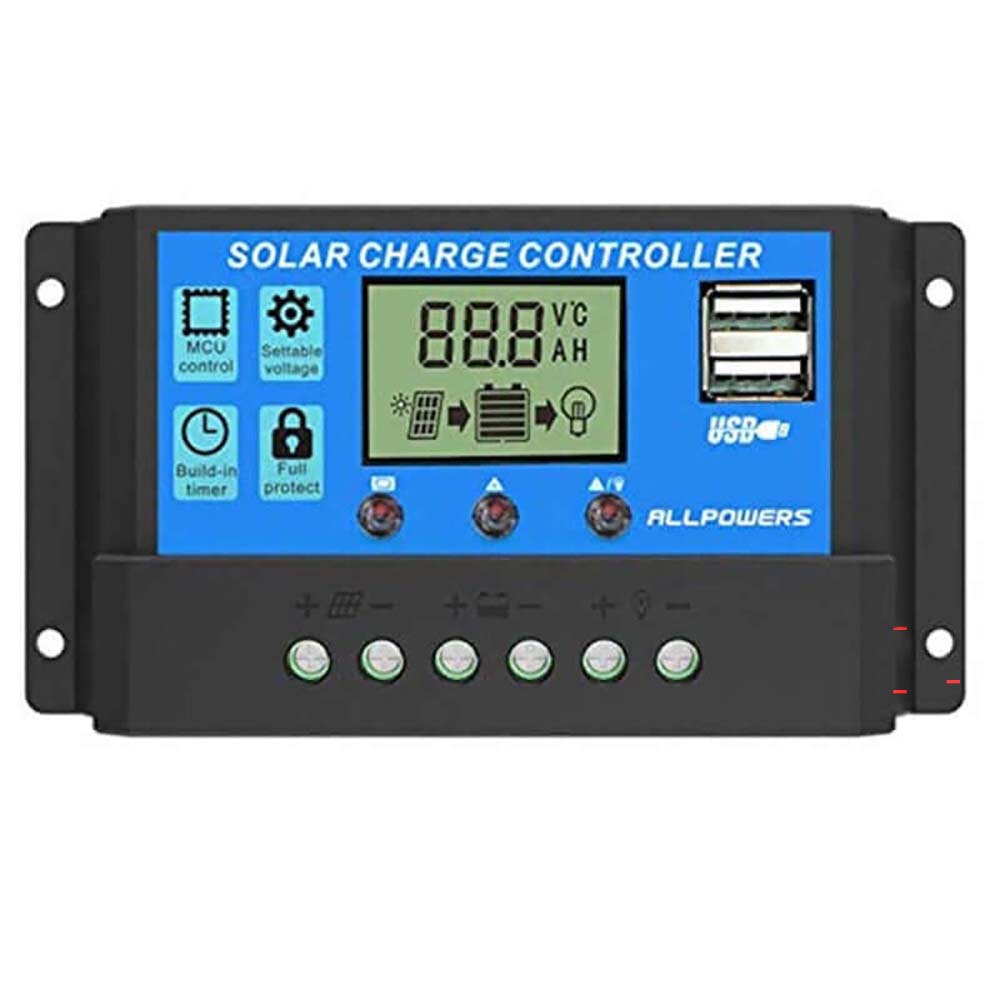

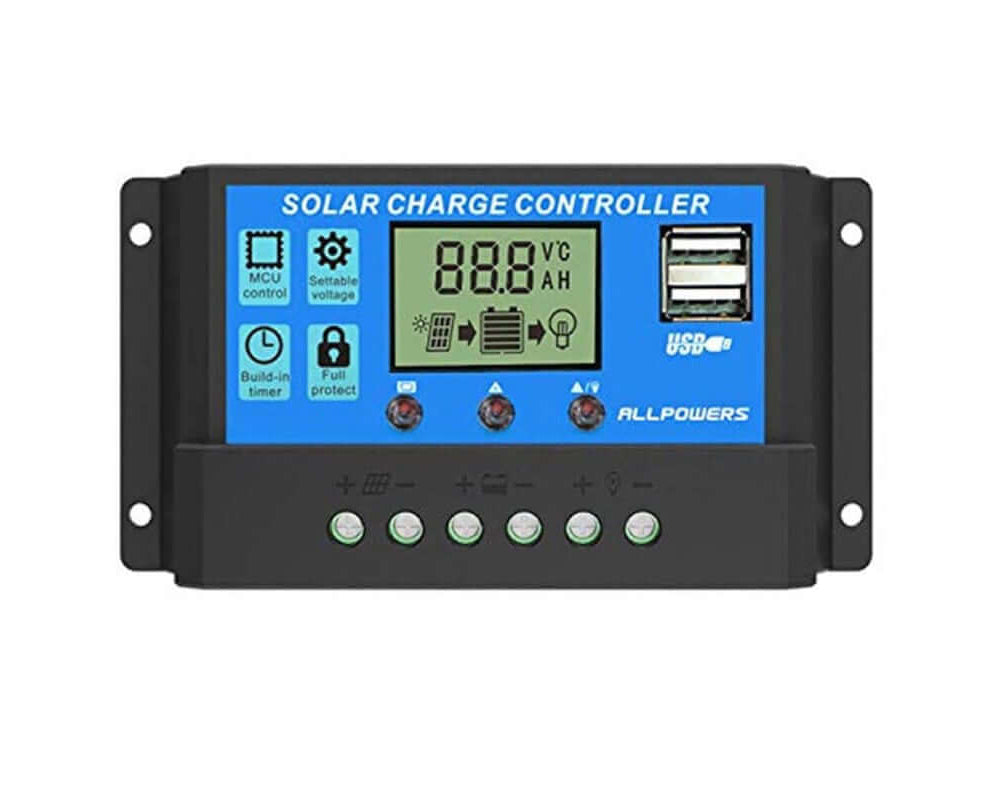

20A Solar Panel Charge Controller - Intelligent Regulator with LCD Display and Dual USB Output
The 20A Solar Panel Charge Controller is designed to efficiently manage your solar energy system with advanced features and user-friendly interfaces. This controller is ideal for home, industrial, and commercial PV systems, providing reliable and safe operation.
Key Features:
-
Multi-Functional LCD Display: Dynamically shows all operating data and working conditions. Allows easy switching between modes and parameter configuration.
-
Dual MOSFET Design: Offers reverse current protection and low heat production for enhanced durability.
-
Comprehensive Protection: Includes built-in short-circuit, open-circuit, reverse, and overload protection to ensure safe usage.
-
Auto Voltage Detection: Supports 12V/24V systems automatically.
-
Dual USB Output: Provides 5V/3A USB output for charging devices.
Specifications:
- Battery Voltage: 12V/24V auto detection
- Charge Current: 20A
- Discharge Current: 20A
- Max Solar Input Voltage: <50V
-
Equalization Voltage:
- Sealed Battery: 14.4V
- Gel Battery: 14.2V
- Flooded Battery: 14.6V
- Float Charge Voltage: 13.7V (default, adjustable)
- Discharge Stop Voltage: 10.7V (default, adjustable)
- Discharge Reconnect Voltage: 12.6V (default, adjustable)
- USB Output: 5V/3A
- Self-Consumption: <10mA
Modes and Settings:
- Floating Charge Voltage: HVD 13.3V-15V
- Recovery after Under Voltage: LVD 11V-13.5V
- Under Voltage Protection: RVD 9V-12.3V
- Load Modes: 24 hours, 1-23 hours, 0 hours
- Battery Options: GEL, Lead-Acid, Flooded
Package Includes:
- 1 x 30A Solar Charge Controller
- 1 x English User Manual
The 20A Solar Panel Charge Controller offers comprehensive management for your solar power system, ensuring efficient energy use and enhanced safety.
