Automatic Sliding Gate Opener Kit

$446.00 $491.00

You Save: $45.00 10%

Only 3 left! .. people are viewing this, and 3 recently purchased it

Order in the next to get it by

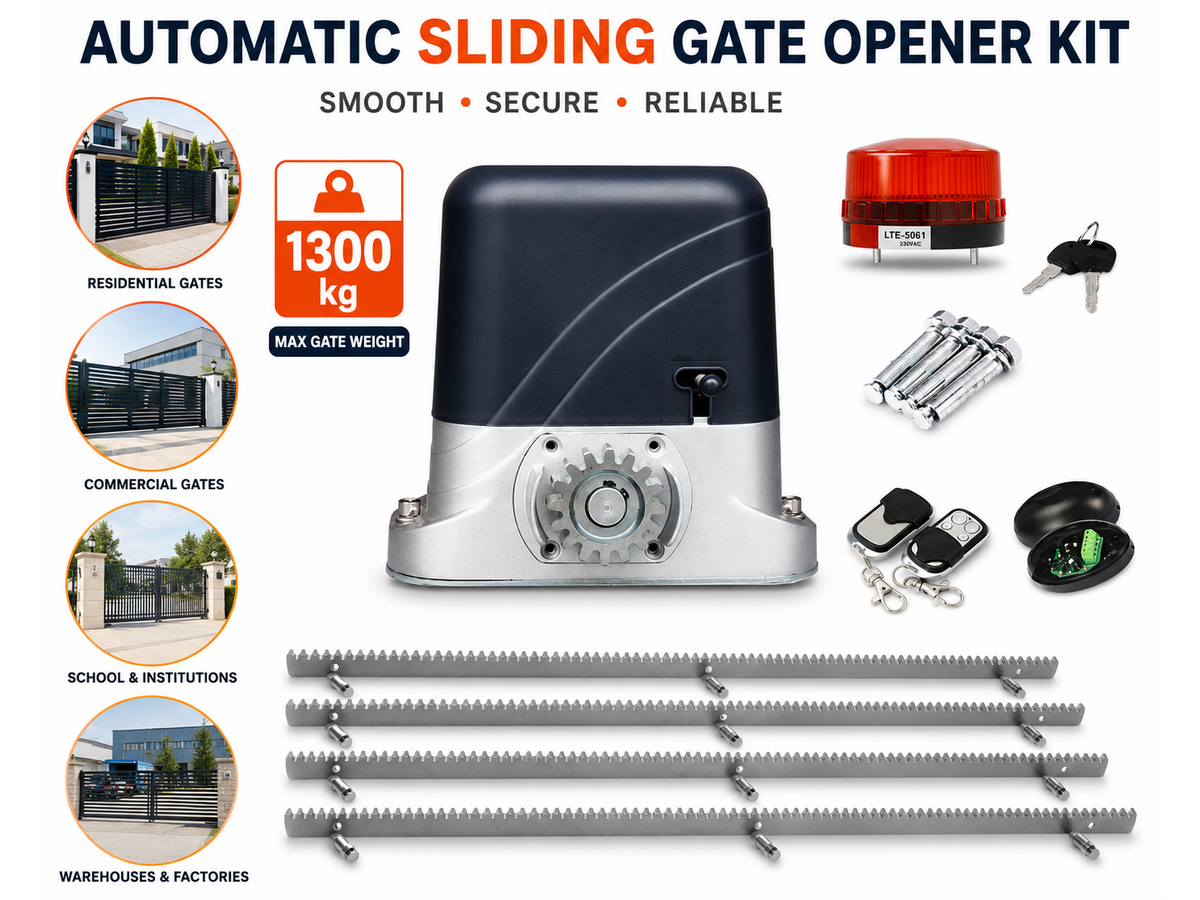

Automatic Sliding Gate Opener Kit Heavy Duty Electric Gate Motor for Gates up to 1300 kg

Secure your property with this Automatic Sliding Gate Opener Kit, designed for residential, commercial, and industrial sliding gates weighing up to 1300 kg. Powered by a reliable 130 W motor, this Automatic Sliding Gate Opener Kit delivers up to 1100 N of pulling force for smooth, quiet, and dependable gate operation.

Built with a heavy-duty all-metal gear drive and a weather-resistant housing, this Automatic Sliding Gate Opener Kit is designed for year-round outdoor use. The integrated control board supports automatic closing, obstacle detection, pedestrian access, and multi-user operation, making it ideal for homes, commercial properties, warehouses, farms, and industrial sites.

For added security, this Automatic Sliding Gate Opener Kit features a self-locking mechanism to help resist forced opening, while the dual-key manual release allows convenient operation during power outages. The included remote controllers provide reliable operation from up to 50 metres away.

Features

1300 kg Gate Capacity – Suitable for heavy residential, commercial, and industrial sliding gates.
130 W High-Performance Motor – Provides up to 1100 N pulling force for smooth gate movement.

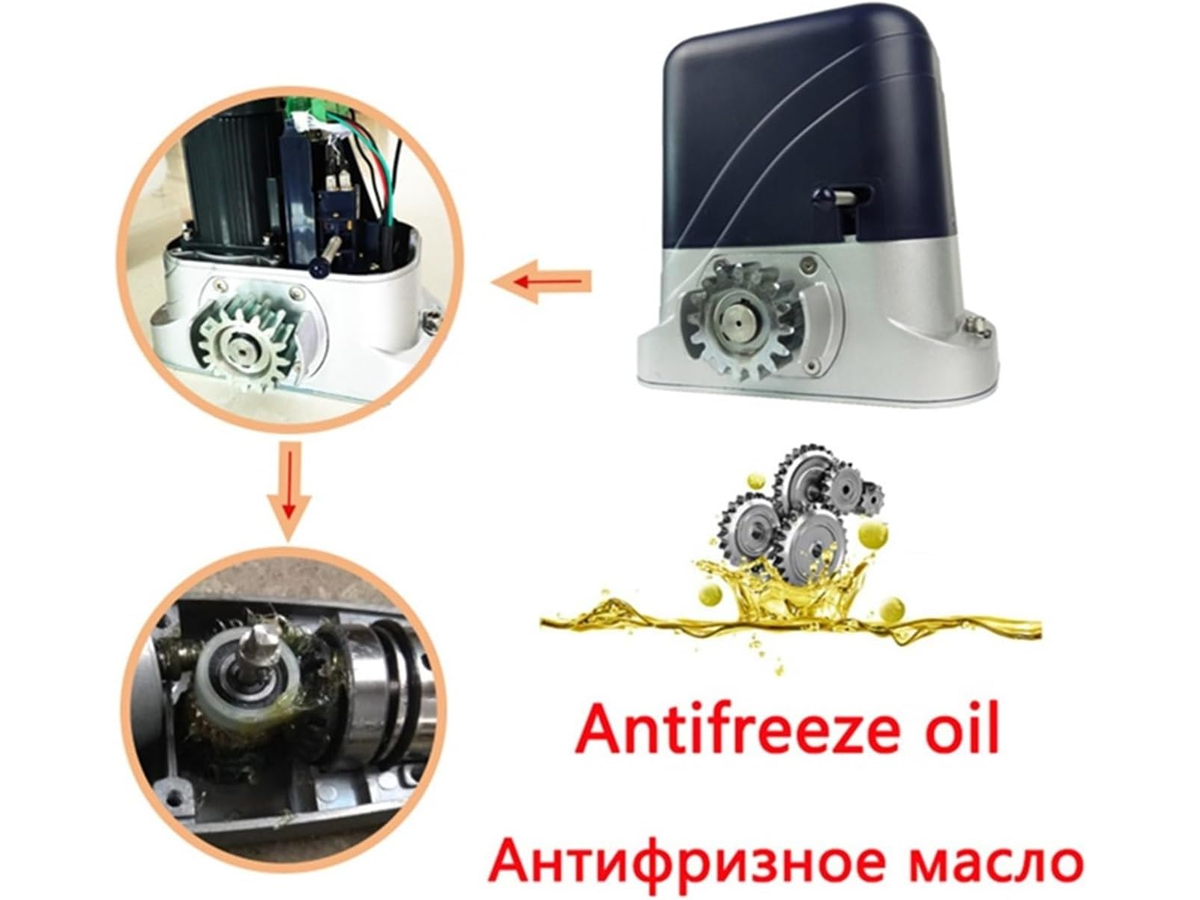

Heavy-Duty Metal Gears – Durable all-metal drive system for long-lasting reliability.
Weather-Resistant Housing – Built for dependable outdoor performance.
Obstacle Detection – Automatically stops and reverses if an obstruction is detected.
Adjustable Auto-Close – Automatically closes the gate after a preset time.
Dual-Key Manual Release – Enables manual gate operation during power failures.
Remote Control Operation – Includes two remotes with an operating range of up to 50 m.
Self-Locking Security – Helps prevent forced pushing and lifting of the gate.
Pedestrian & Multi-User Modes – Supports pedestrian access and shared entry applications.

Specifications

Product Type: Automatic Sliding Gate Opener Motor
Maximum Gate Weight: 1300 kg
Maximum Pull Force: 1100 N
Motor Power: 130 W
Power Supply: 230 V AC
Frequency: 50 Hz
Motor Speed: 1400 RPM
Gate Travel Speed: 12 m/min
Output Torque: 18.0 N·m
Output Gear Module: M4
Output Gear: 16 Teeth (Z16)
Operating Temperature: -25°C to +55°C
Working Humidity: ≤85%
Remote Control Range: Up to 50 m
Protection Class: Class B
Net Weight: 11 kg

Dimensions

Overall Height: 25 cm
Overall Width: 27.5 cm
Overall Depth: 31.1 cm
Main Body Width: 13.3 cm
Drive Gear Centre Height: 8.9 cm
Top Width (Gear Housing): 24.8 cm
Base Mounting Width: 13 cm

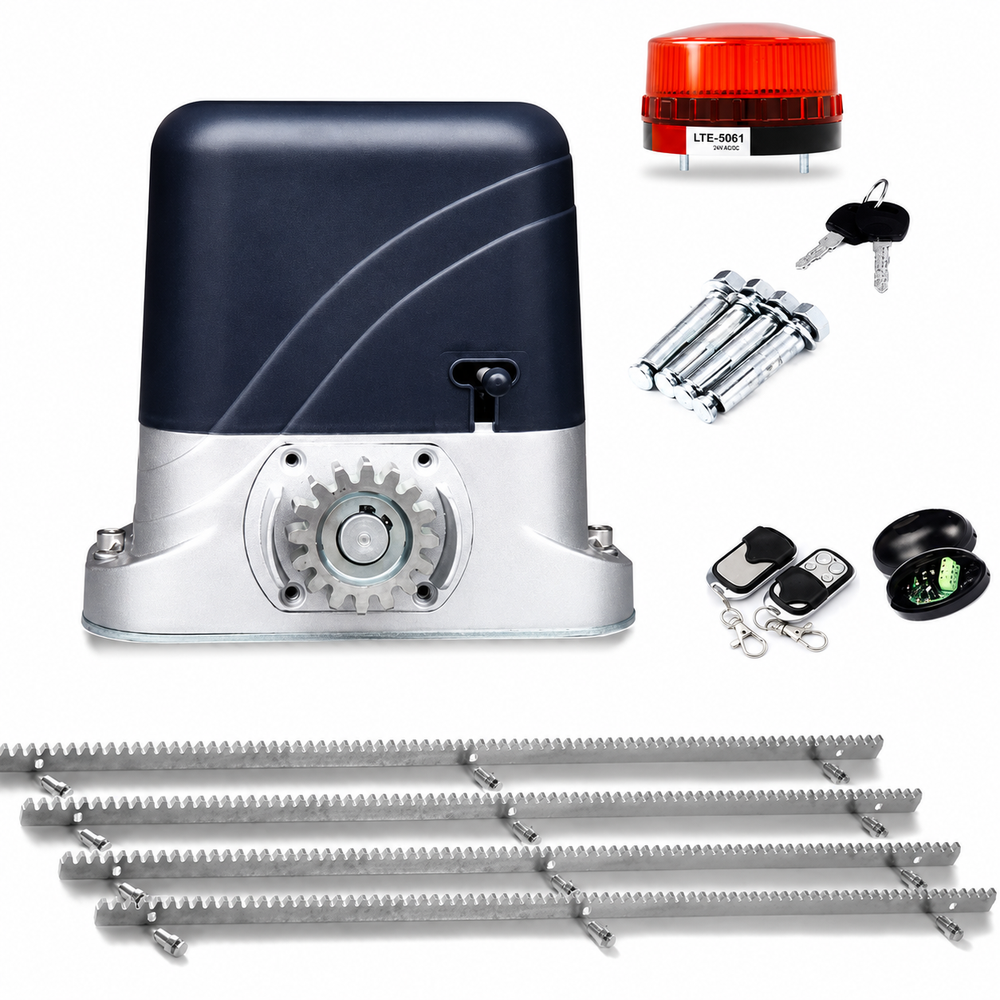

Package Includes

1 × Automatic Sliding Gate Opener Motor
2 × Remote Controllers
1 × Control Board (Pre-installed)
2 × Manual Release Keys
1 × Installation Hardware Kit (Bolts, Nuts & Limit Switch Stoppers)
1 × User Manual
