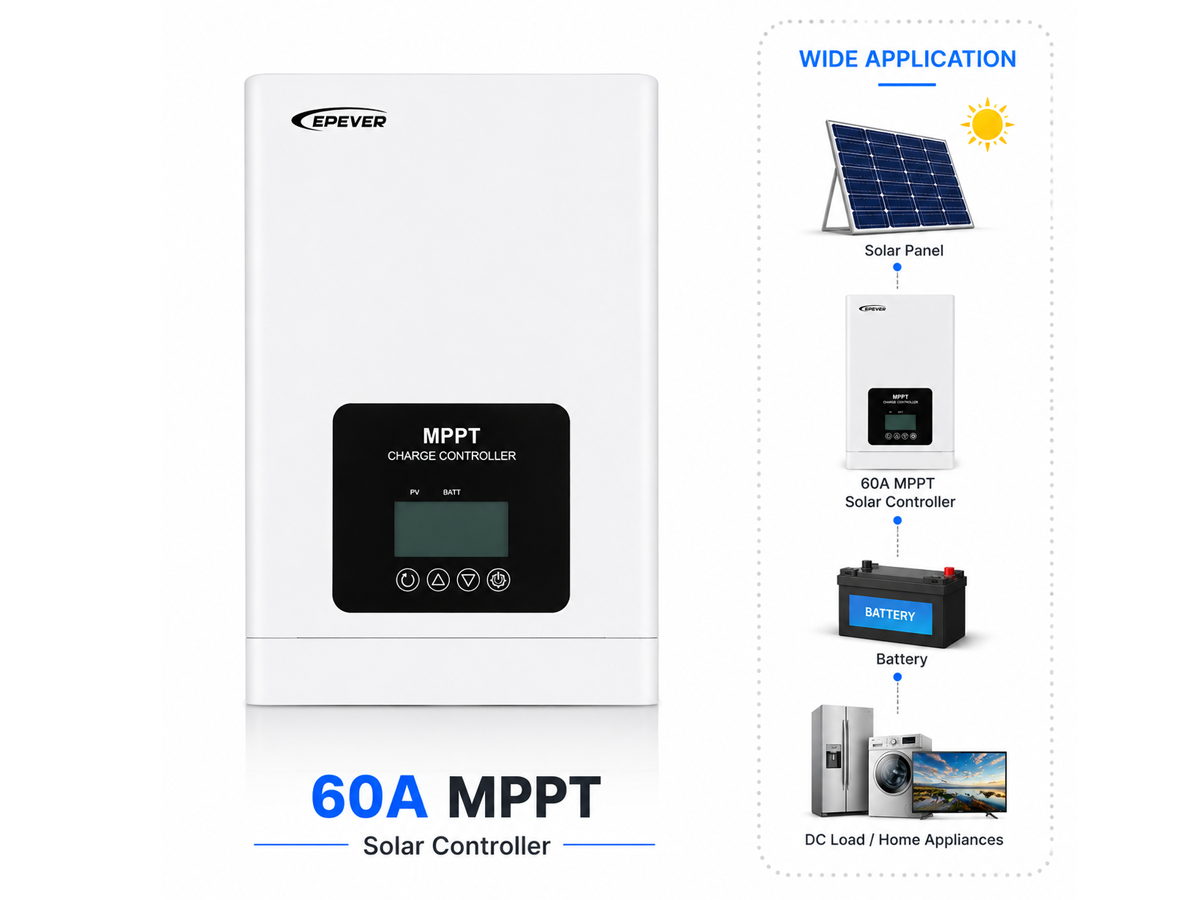

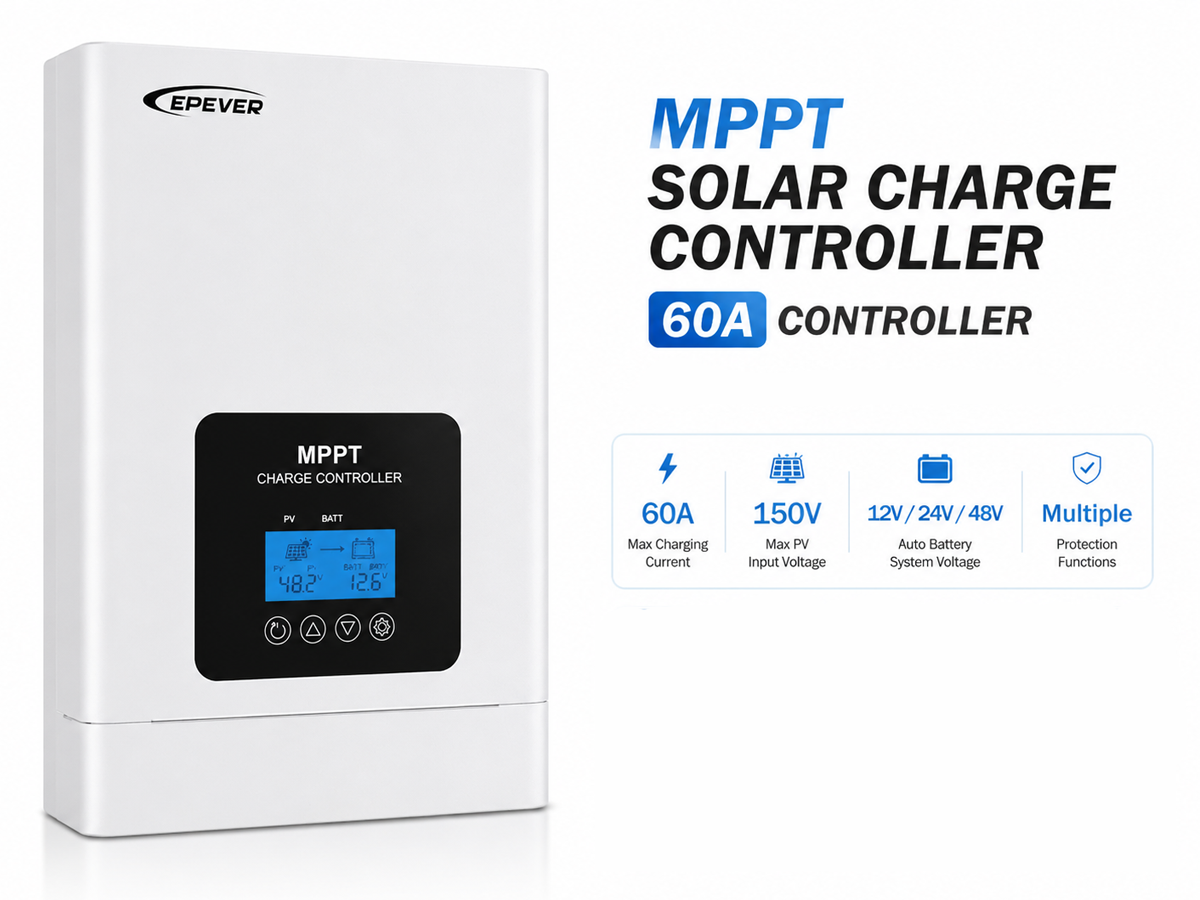

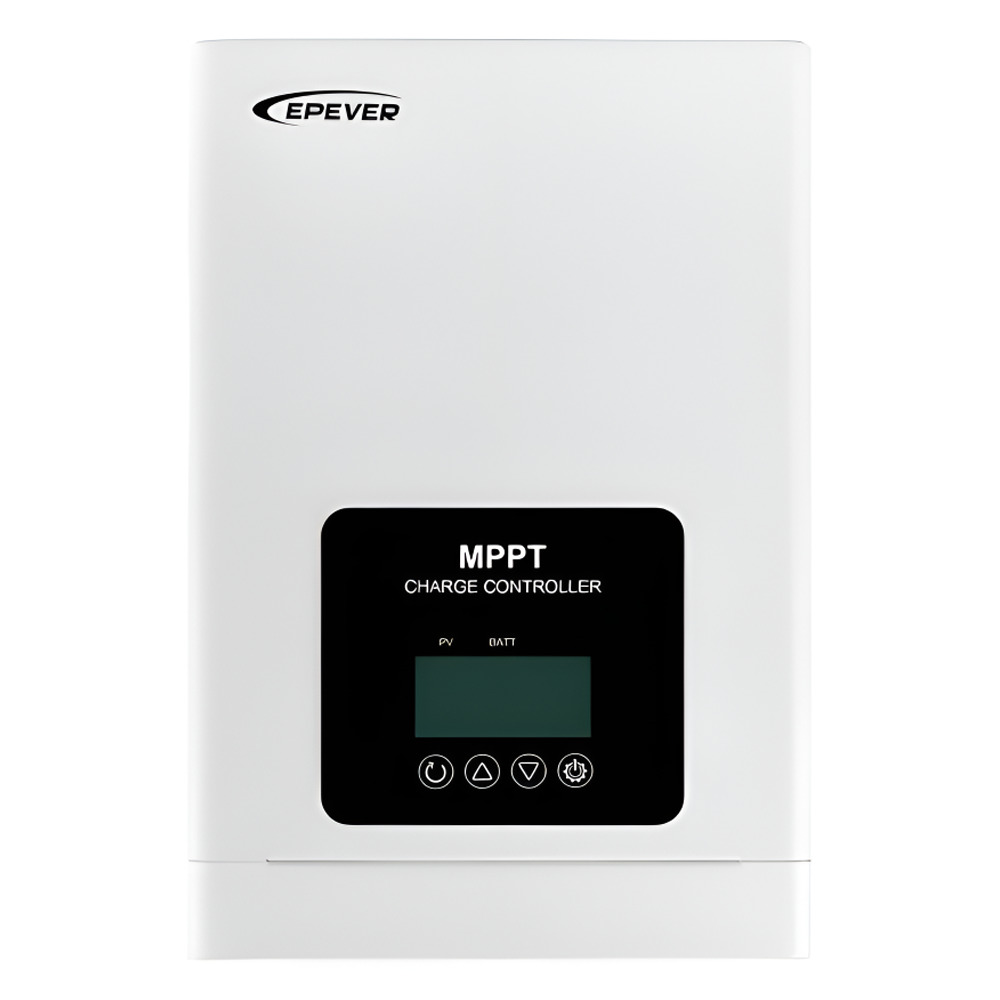

MPPT Solar Charge Controller 60A 48V Smart Solar Regulator
MPPT Solar Charge Controller is designed for efficient solar power management with advanced tracking performance and smart battery charging support. This MPPT Solar Charge Controller supports 12V, 24V, and 48V DC systems with automatic voltage detection for flexible solar energy applications.
The MPPT Solar Charge Controller features advanced MPPT tracking technology with efficiency ratings of ≥99.5%, helping maximise solar energy conversion and charging performance. Dual PV input support allows the MPPT Solar Charge Controller to connect multiple solar panel inputs for improved flexibility and system performance.
Built for reliable solar battery management, the MPPT Solar Charge Controller supports Lithium batteries including LiFePO4 and NCM, along with Lead-acid battery types such as AGM, GEL, Flooded, and user-defined configurations.
The MPPT Solar Charge Controller includes a real-time LCD display for system monitoring, configuration settings, and charging performance information. Smart protection systems help the MPPT Solar Charge Controller provide protection against over-voltage, over-current, short circuit, and temperature conditions.
Designed for continuous solar energy operation, the MPPT Solar Charge Controller supports up to 60A charging current with wide PV voltage compatibility suitable for residential and off-grid solar systems.
Specifications
- Product Type: MPPT Solar Charge Controller
- Model: TEP6415
- Rated Charge Current: 60A
- System Voltage: 12V / 24V / 48V DC (Auto)
- Max PV Power: 3120W – 5200W
- Max PV Open Circuit Voltage: 150V
- Output Voltage Range: 8V – 62V
- Tracking Efficiency: ≥99.5%
- Display: LCD Screen
- Battery Support: Lead-acid (AGM / GEL / Flooded / User-defined)
- Lithium Support: LiFePO4 / NCM / User-defined
- OEM Support: Yes
Package Contains
- 1 x MPPT Solar Charge Controller (TEP6415)
- 1 x User Manual
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
MPPT Solar Charge Controller 60A 48V Smart Solar Regulator
MPPT Solar Charge Controller is designed for efficient solar power management with advanced tracking performance and smart battery charging support. This MPPT Solar Charge Controller supports 12V, 24V, and 48V DC systems with automatic voltage detection for flexible solar energy applications.
The MPPT Solar Charge Controller features advanced MPPT tracking technology with efficiency ratings of ≥99.5%, helping maximise solar energy conversion and charging performance. Dual PV input support allows the MPPT Solar Charge Controller to connect multiple solar panel inputs for improved flexibility and system performance.
Built for reliable solar battery management, the MPPT Solar Charge Controller supports Lithium batteries including LiFePO4 and NCM, along with Lead-acid battery types such as AGM, GEL, Flooded, and user-defined configurations.
The MPPT Solar Charge Controller includes a real-time LCD display for system monitoring, configuration settings, and charging performance information. Smart protection systems help the MPPT Solar Charge Controller provide protection against over-voltage, over-current, short circuit, and temperature conditions.
Designed for continuous solar energy operation, the MPPT Solar Charge Controller supports up to 60A charging current with wide PV voltage compatibility suitable for residential and off-grid solar systems.
Specifications
- Product Type: MPPT Solar Charge Controller
- Model: TEP6415
- Rated Charge Current: 60A
- System Voltage: 12V / 24V / 48V DC (Auto)
- Max PV Power: 3120W – 5200W
- Max PV Open Circuit Voltage: 150V
- Output Voltage Range: 8V – 62V
- Tracking Efficiency: ≥99.5%
- Display: LCD Screen
- Battery Support: Lead-acid (AGM / GEL / Flooded / User-defined)
- Lithium Support: LiFePO4 / NCM / User-defined
- OEM Support: Yes
Package Contains
- 1 x MPPT Solar Charge Controller (TEP6415)
- 1 x User Manual
