MPPT Solar Charge Controller 20A

$60.00 $88.00

$219.00 $263.00

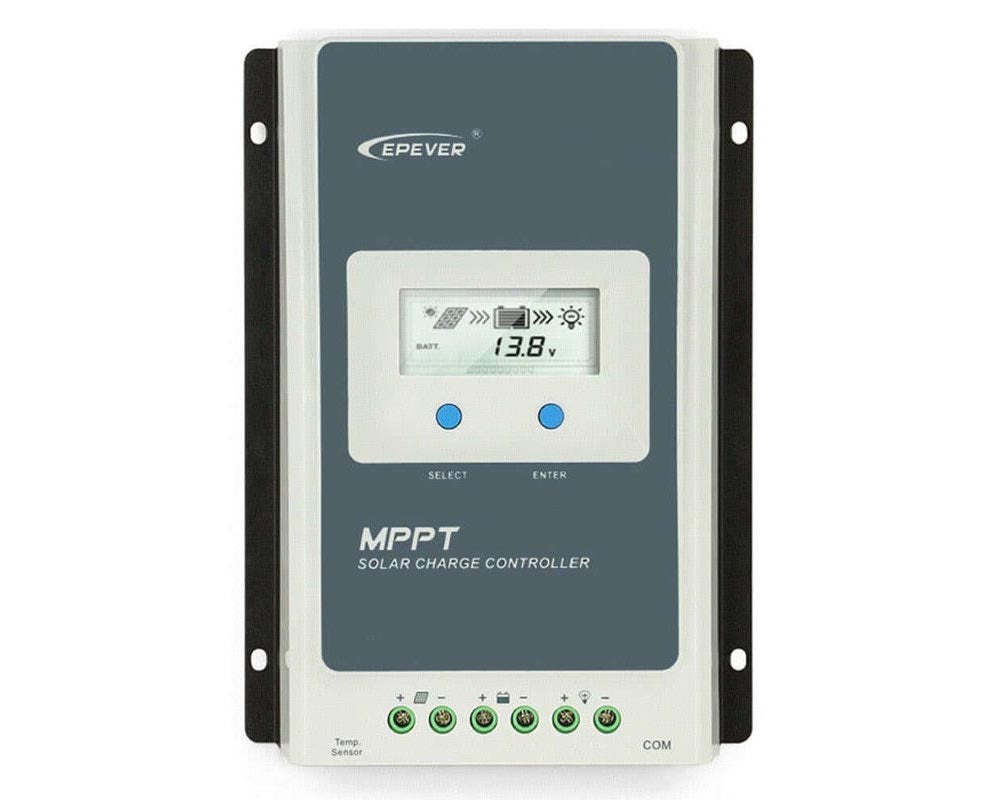

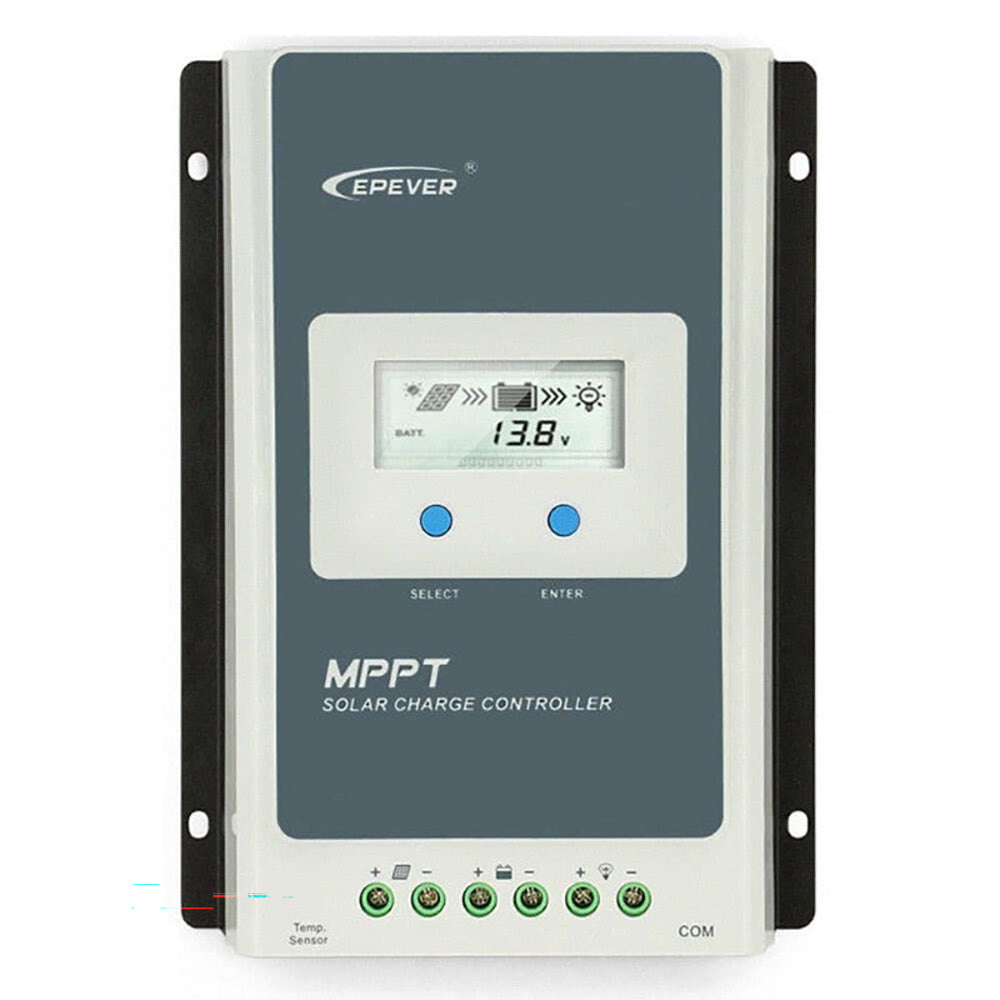

EPEVER Tracer MPPT Solar Charger 20A

The EPEVER Tracer MPPT Solar Charger 20A is an upgraded charge controller featuring Solar Charge Controller advanced MPPT technology and multiple load work modes. It is designed with a Negative Ground Design and is suitable for various battery types including GEL, Sealed, Flooded, Solar Charge Controller and Lithium Battery.

Features:

Advanced MPPT technology with Solar Charge Controller efficiency no less than 99.5%
Ultra-fast tracking speed and excellent tracking efficiency
Accurately recognizing and tracking multiple power points
Multi-function LCD displays system information intuitively
Solar Charge Controller User programmable for battery types, load control, etc.
4-Stage MPPT charge with multiple load work modes
Common positive grounding design
RS485 port with industrial standard MODBUS open architecture Solar Charge Controller

Specifications:

Model: Tracer2210AN MPPT charge controller
Rated charge current: 20A
Rated discharge current: 20A
System voltage: 12/24V DC Auto
Solar Charge Controller Max. PV input power: 260W/12V, 520W/24V
Grounding: Common Negative Ground
Battery voltage range: 8-32V
Max. PV open circuit voltage: 100V, 92V (25°C) Solar Charge Controller
MPP Voltage range: BAT Voltage+2V-72V
Self-consumption: 12mA
Discharge circuit voltage drop: 0.23V
Solar Charge Controller Temperature compensate coefficient: -3mV/°C/2V (Default)
RS485 interface: 5VDC/100mA
LCD backlight time: 60S (Default)
Working environment temperature: -25°C to +50°C (100% input and output)
Storage temperature range: -20°C to +70°C
Relative humidity: 95%, N.C.

Keywords: EPEVER Tracer MPPT Solar Charger, 20A Charge Controller, Negative Ground Design, Solar Panel Power, Battery Support

Shipping	This item ships to
Delivery	Estimated between and . Will usually ship within 1 business day.

Customer Reviews

Based on 16 reviews Write a review

Description

EPEVER Tracer MPPT Solar Charger 20A

Features:

Advanced MPPT technology with Solar Charge Controller efficiency no less than 99.5%
Ultra-fast tracking speed and excellent tracking efficiency
Accurately recognizing and tracking multiple power points
Multi-function LCD displays system information intuitively
Solar Charge Controller User programmable for battery types, load control, etc.
4-Stage MPPT charge with multiple load work modes
Common positive grounding design
RS485 port with industrial standard MODBUS open architecture Solar Charge Controller

Specifications:

Model: Tracer2210AN MPPT charge controller
Rated charge current: 20A
Rated discharge current: 20A
System voltage: 12/24V DC Auto
Solar Charge Controller Max. PV input power: 260W/12V, 520W/24V
Grounding: Common Negative Ground
Battery voltage range: 8-32V
Max. PV open circuit voltage: 100V, 92V (25°C) Solar Charge Controller
MPP Voltage range: BAT Voltage+2V-72V
Self-consumption: 12mA
Discharge circuit voltage drop: 0.23V
Solar Charge Controller Temperature compensate coefficient: -3mV/°C/2V (Default)
RS485 interface: 5VDC/100mA
LCD backlight time: 60S (Default)
Working environment temperature: -25°C to +50°C (100% input and output)
Storage temperature range: -20°C to +70°C
Relative humidity: 95%, N.C.
