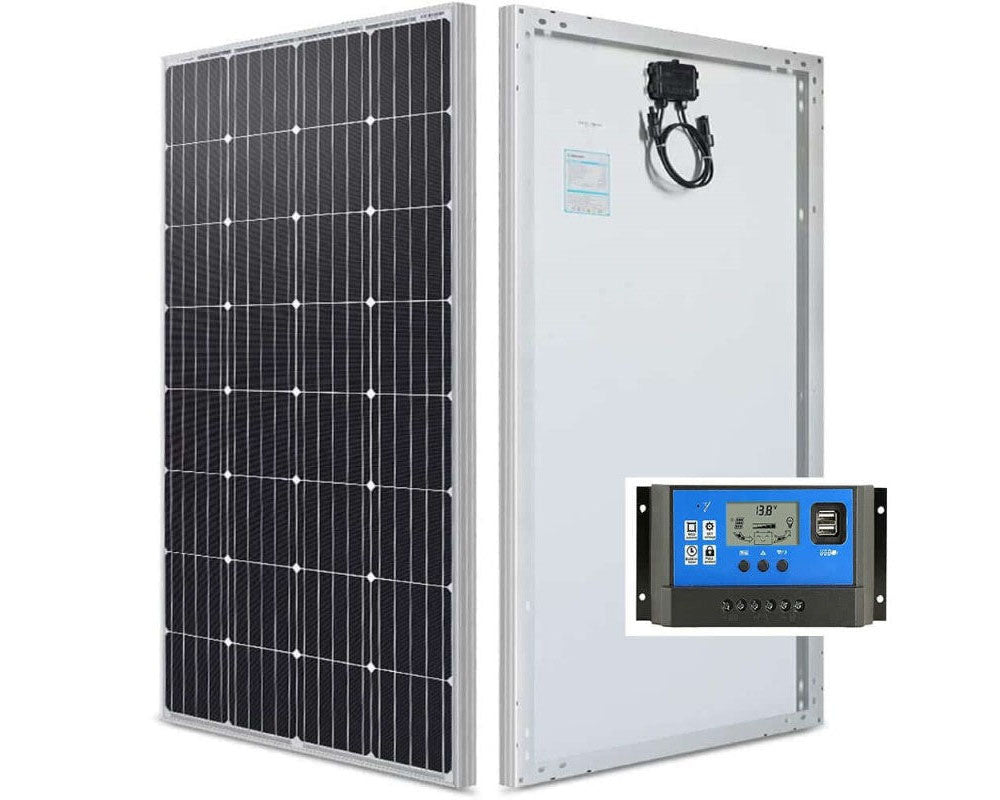

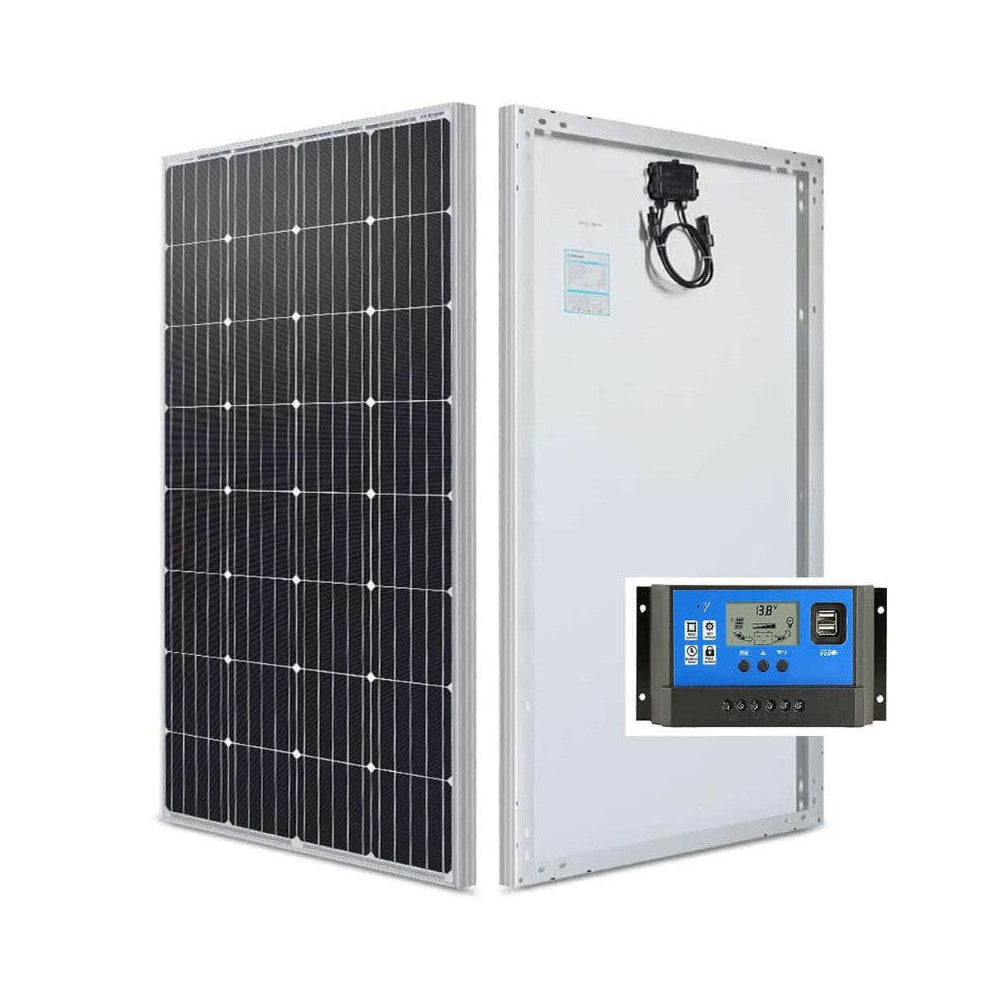

100W High-Efficiency Mono-crystalline Solar Panel with Trinasolar® Cells

Our 100W solar panel, crafted with high-efficiency A-grade Mono-crystalline Trinasolar® cells, is designed to maximize solar energy production. Perfect for various applications, it features durable construction and straightforward installation.

Features:

High Efficiency: Manufactured with A-grade Mono-crystalline Trinasolar® cells, offering superior solar energy conversion efficiency.
Optimal Light Absorption: The 3.2mm safety/tempered glass front has low reflective properties and low-iron content for maximum light absorption and transparency.
Durable Construction: The corrosion-resistant anodized aluminum frame adds strength and facilitates easy mounting, ensuring long-lasting performance.
Reliable Protection: The junction box with a weather-tight seal has an IP65 rating and includes a built-in bypass diode for protection against partial shading. Supplied with 900mm of cable for each positive/negative terminal, with standard MC4 connectors for secure connections.

Specifications:

Chemical Type: Mono-crystalline silicon solar cell
Structure Type: Homogeneous junction solar cell
Waterproof: IP65
Status of Use: Flat solar battery
Output Power: 100W
Operating Voltage: 18V
Conversion Efficiency: 18%
Working Current: 5.5A
Open Circuit Voltage: 21.6V
Field Connections: Use minimum no.11 AWG copper wires insulated for a minimum 90°C
Power Tolerance: ±3%
Cell Efficiency: 20.50%
Module Efficiency STC: 18.47%
Operating Temperature Range: -40°C to +85°C
Cell Type: Mono-crystalline Trinasolar®
Size: 1200*550*30mm
Weight: 7kg
Temperature Coefficient of Pmax: -0.435%/°C
Temperature Coefficient of Voc: -0.35%/°C
Temperature Coefficient of Isc: 0.043%/°C
Normal Operating Cell Temperature: 47°C ± 2°C
Wind Load: 2400 Pascal
Snow Load: 5400 Pascal
Warranty: 10 Years
Application Class: Class A
Fire Rating: Class C

Packaging Content:

1 x High-Efficiency 100W Solar Panel
1 x 20A 12V/24V Auto Switch Charge Controller

We also offer solar panels in various capacities including 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W. Please check our store for more options.
