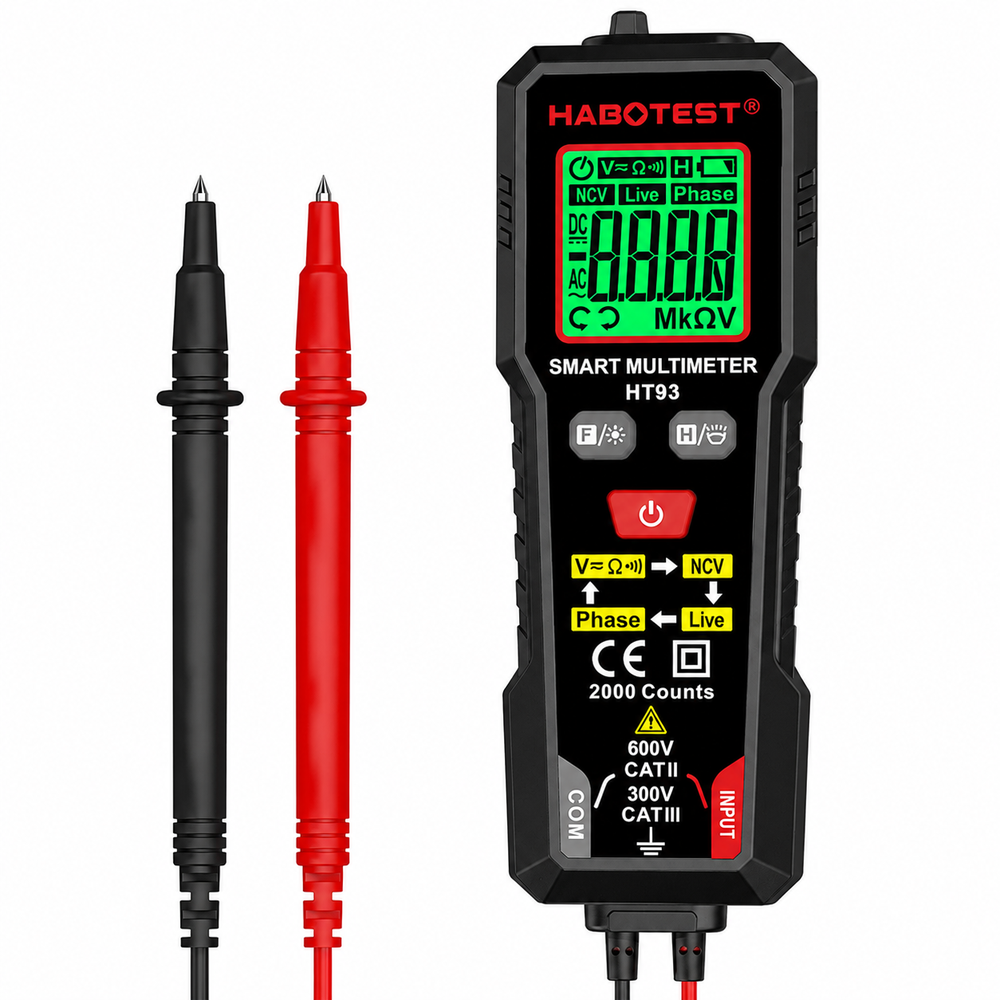

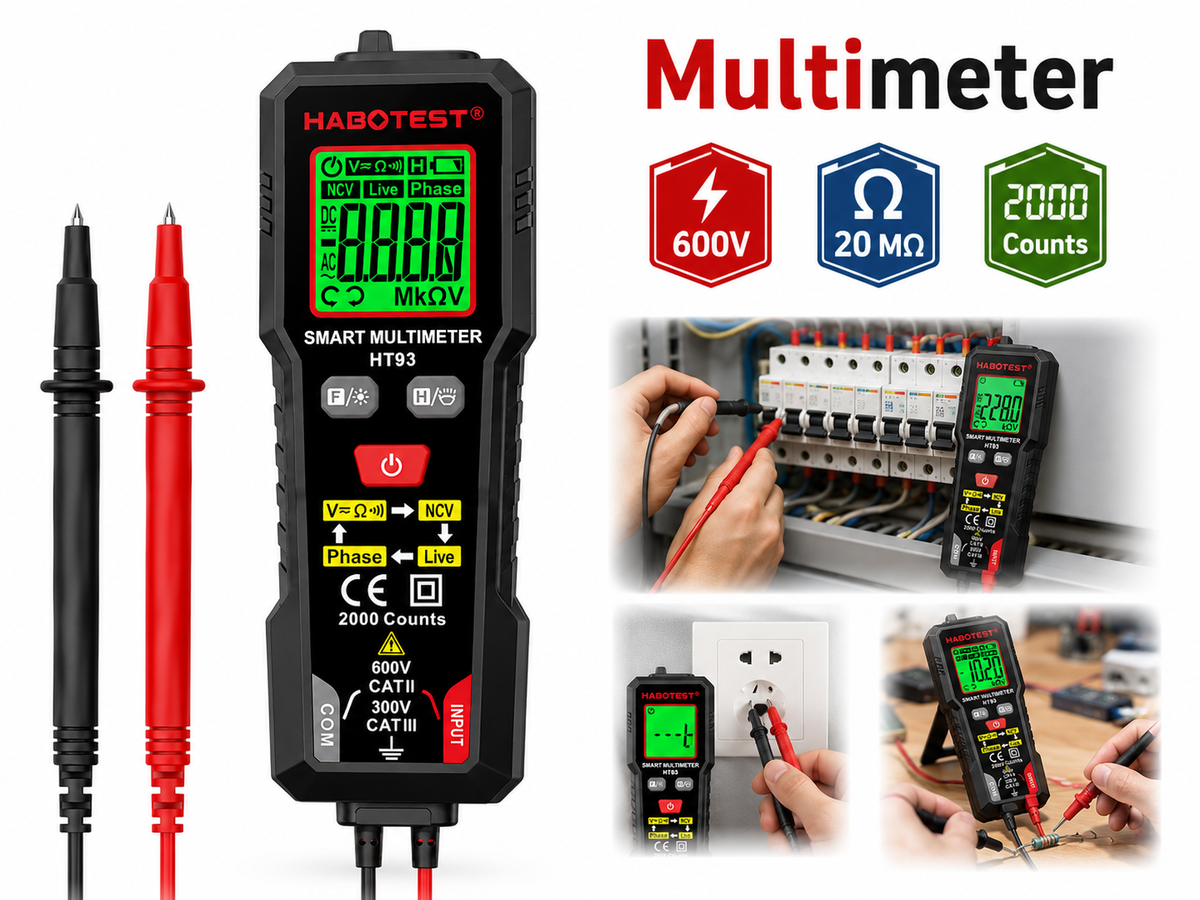

Smart Multimeter TRMS 2000 Counts Voltmeter with NCV
The Smart Multimeter is a compact handheld tester for household, automotive and industrial electrical testing. This Smart Multimeter measures AC/DC voltage, resistance, continuity and phase, with True RMS and 2000 counts.
The Smart Multimeter uses smart automatic operation to identify measurement content and select the optimal resolution range. The Smart Multimeter also includes NCV, live test, data hold, auto-off, low battery indication and overload indication.

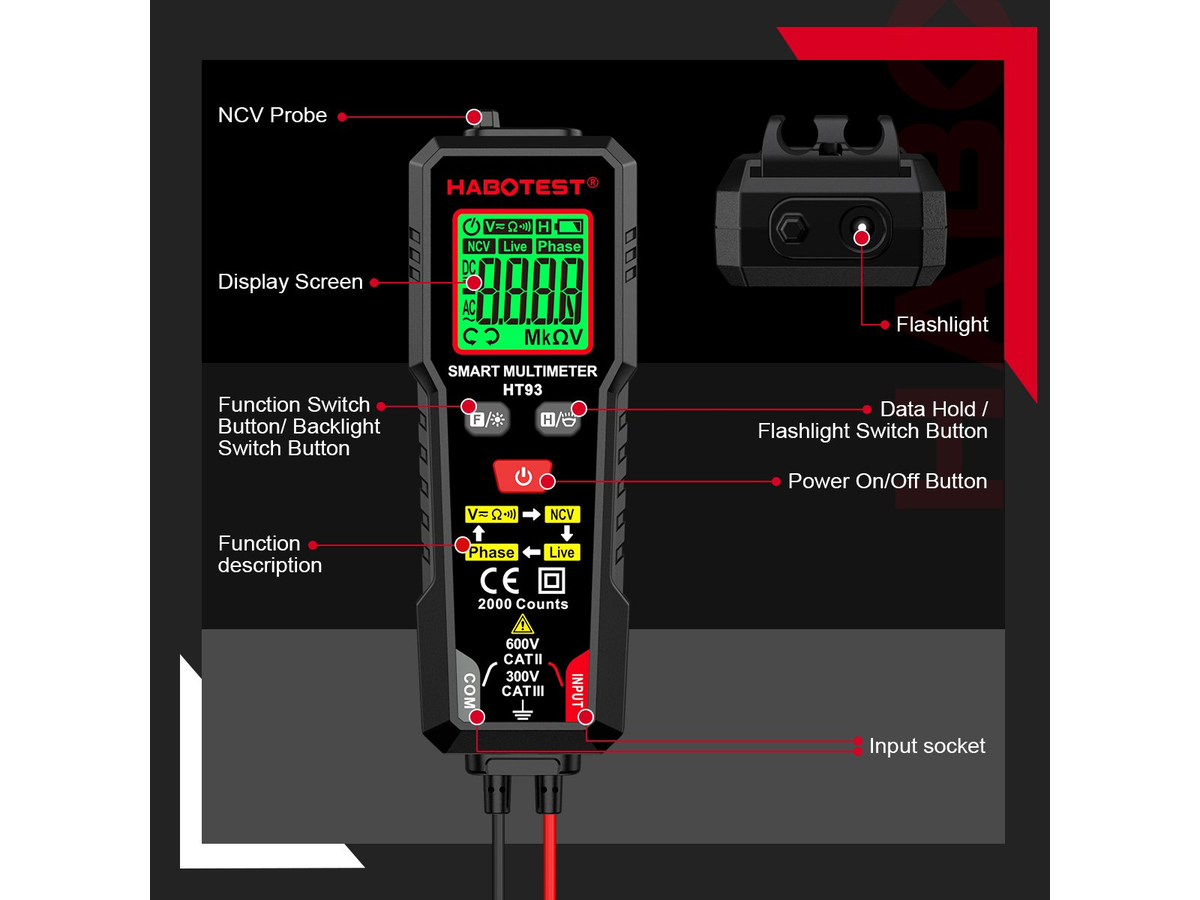

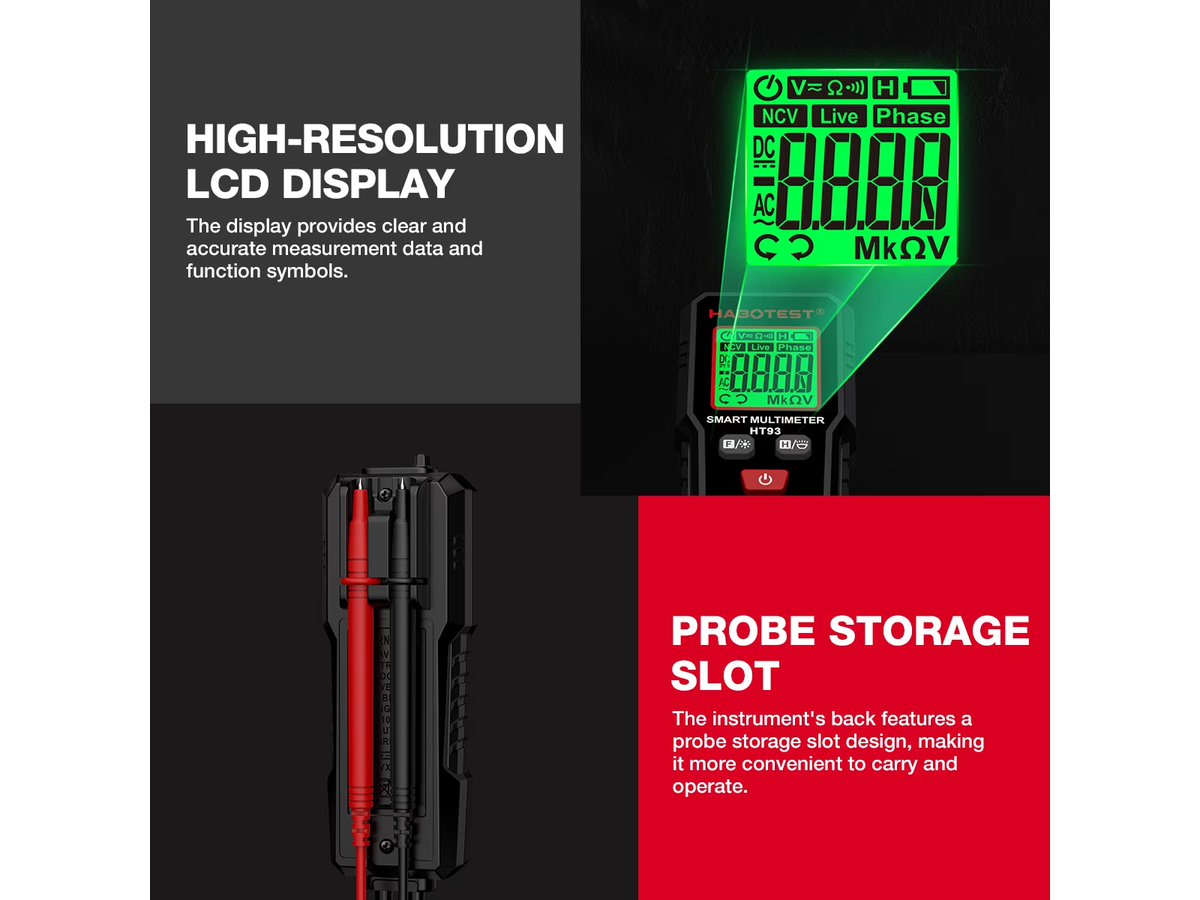

The Smart Multimeter features a backlight, work light, rear test lead holder and non-removable test leads. This Smart Multimeter operates with 2 x 1.5V AAA batteries, which are not included, and has an EN61010-2-030 EN61010-2-033 CAT III 600V safety rating.
Key Features / Specifications
- Smart Multimeter with 2000 counts
- True RMS measurement
- Compact handheld design
- Automatic smart measurement mode
- DC voltage measurement
- AC voltage measurement

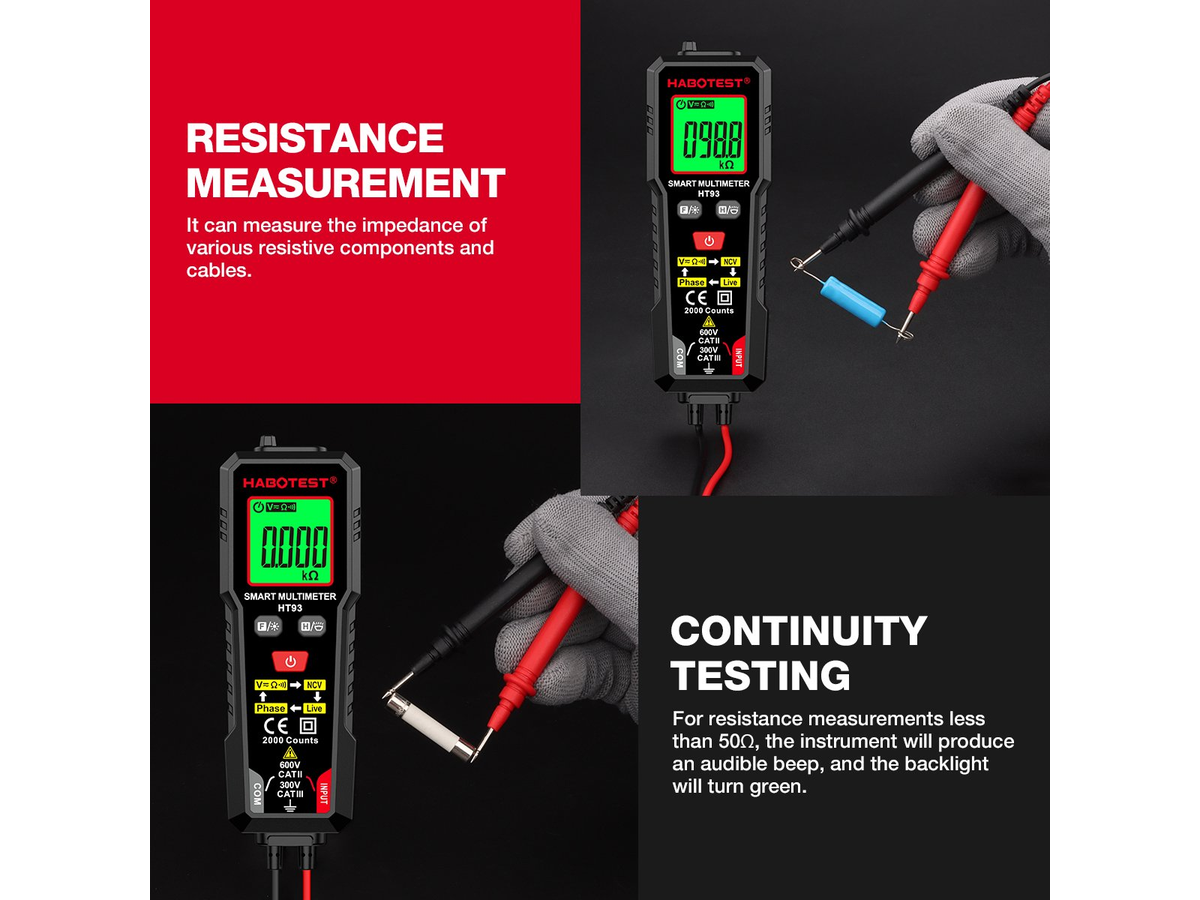

- Resistance measurement
- Continuity testing
- Phase testing

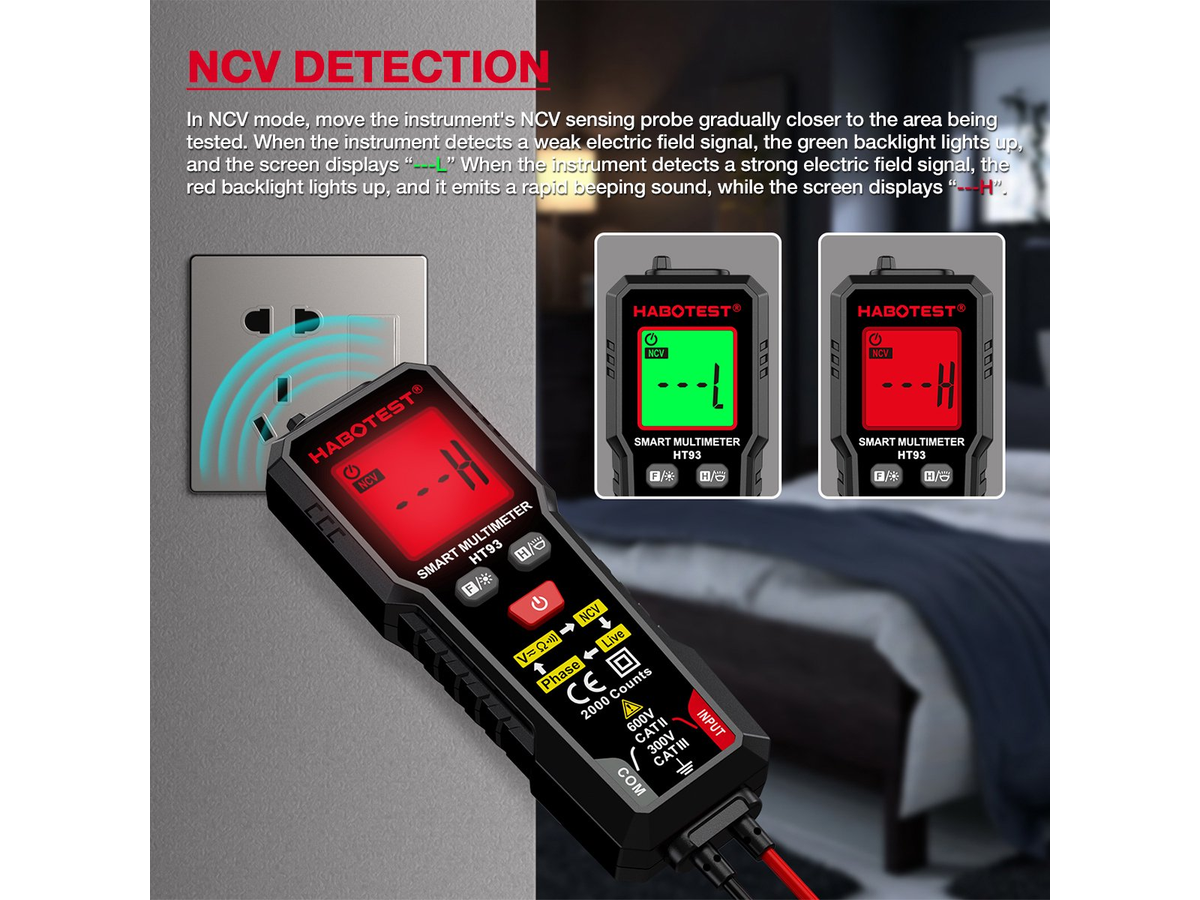

- NCV function

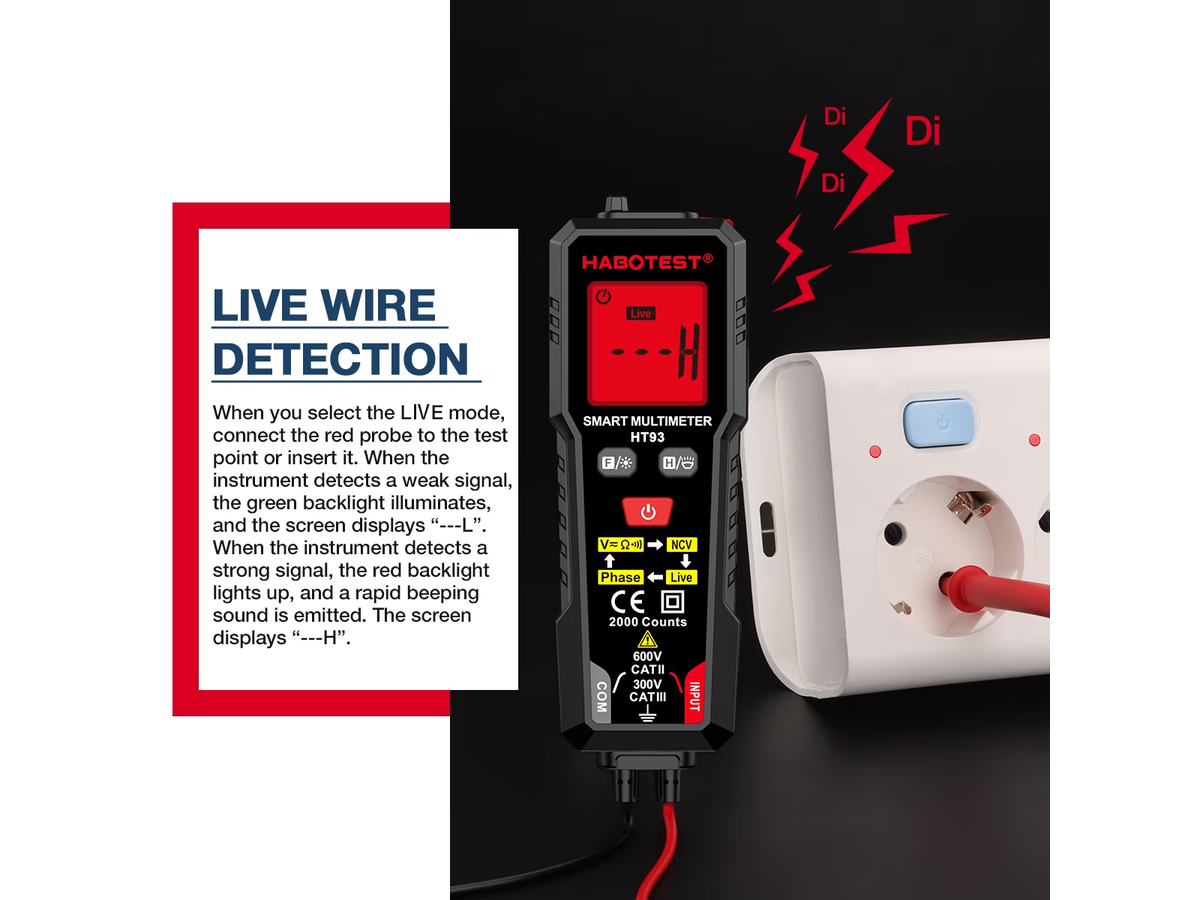

- Live wire measurement
- Data hold function
- Auto-off function

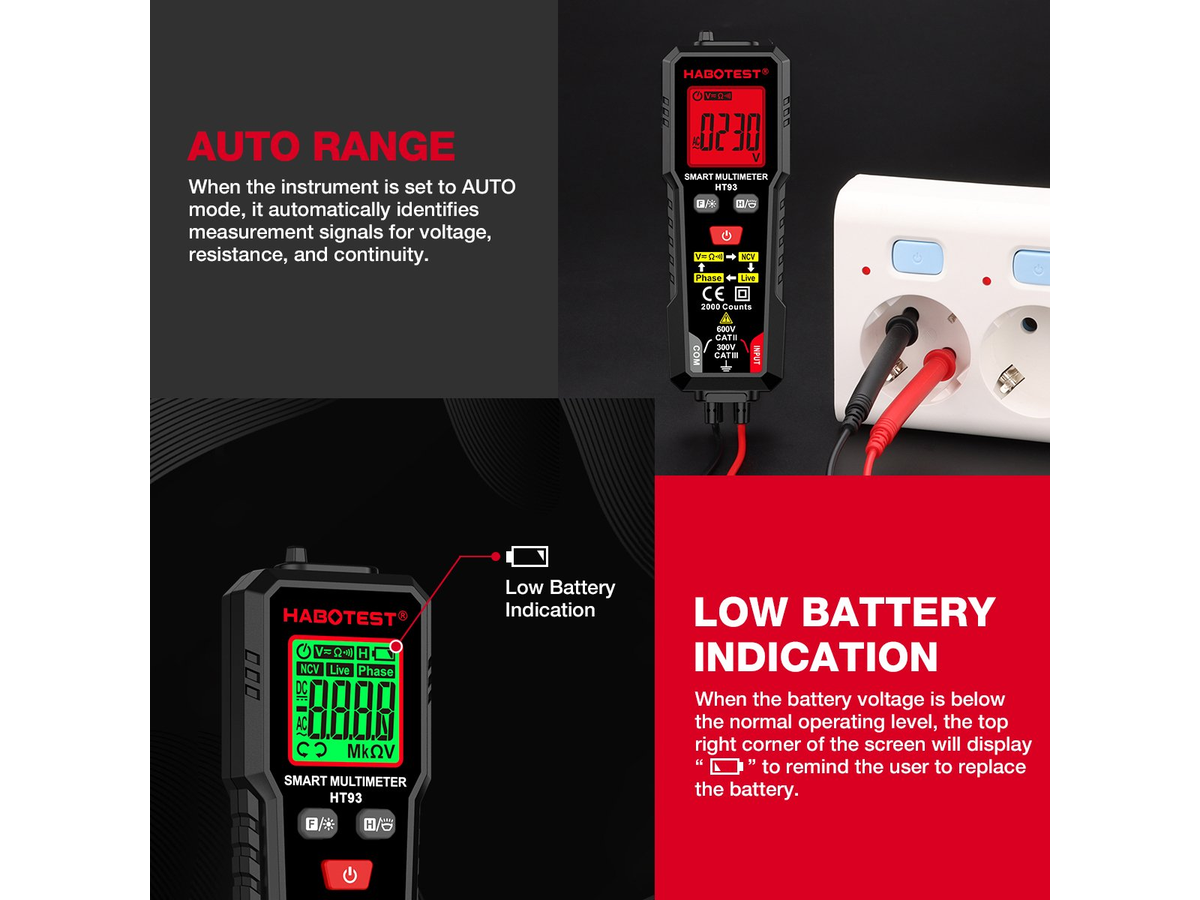

- Low battery indication
- Overload indication with "OL" display
- Backlight

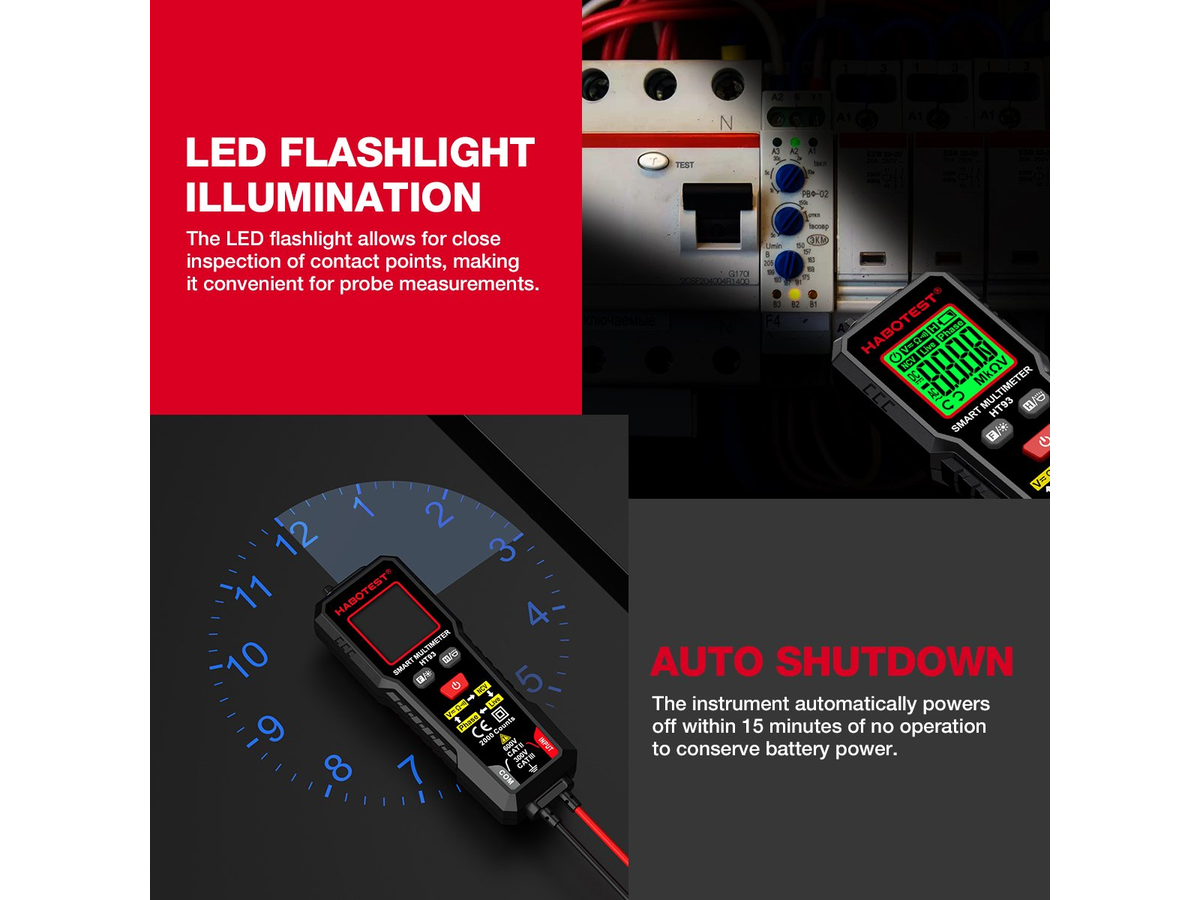

- Work light
- Non-removable test leads
- Rear test lead holder
- Anti-burn and overload protection
- Suitable for household, automotive and industrial electrical testing

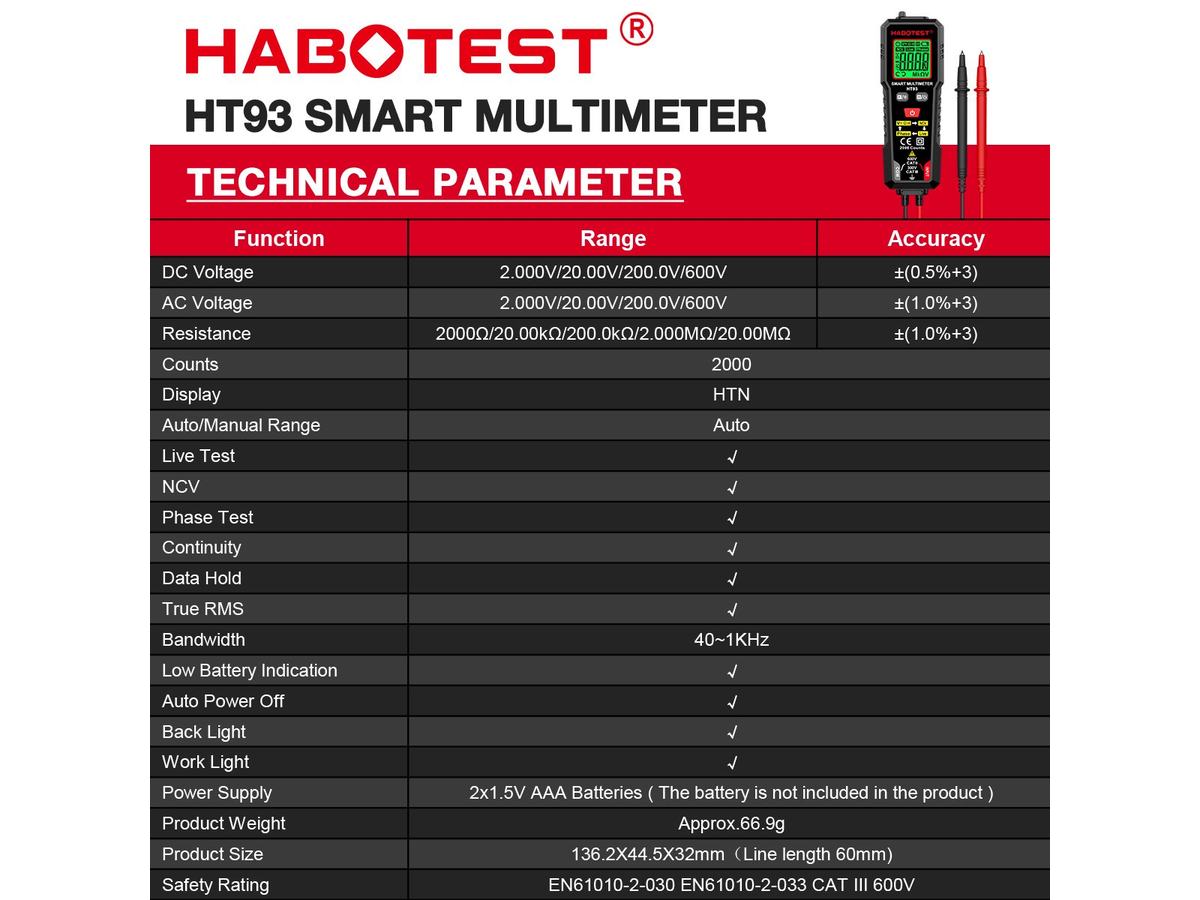

Specifications
- Model: HT93
- Material: ABS
- Voltage: 2V/20V/200V/600V, ±(0.5%+3)
- AC Voltage: 2V/20V/200V/600V, ±(1.0%+3)
- Resistance: 2000Ω/20kΩ/200kΩ/2MΩ/20MΩ, ±(1.0%+3)
- Counts: 2000
- Display: HTN
- Auto/Manual: Auto
- Live Test: Yes
- NCV: Yes
- Phase Test: Yes
- Continuity: Yes
- Data Hold: Yes
- True RMS: Yes
- Bandwidth: 40~1kHz
- Low Battery Indication: Yes
- Auto Off: Yes
- Back Light: Yes
- Work Light: Yes

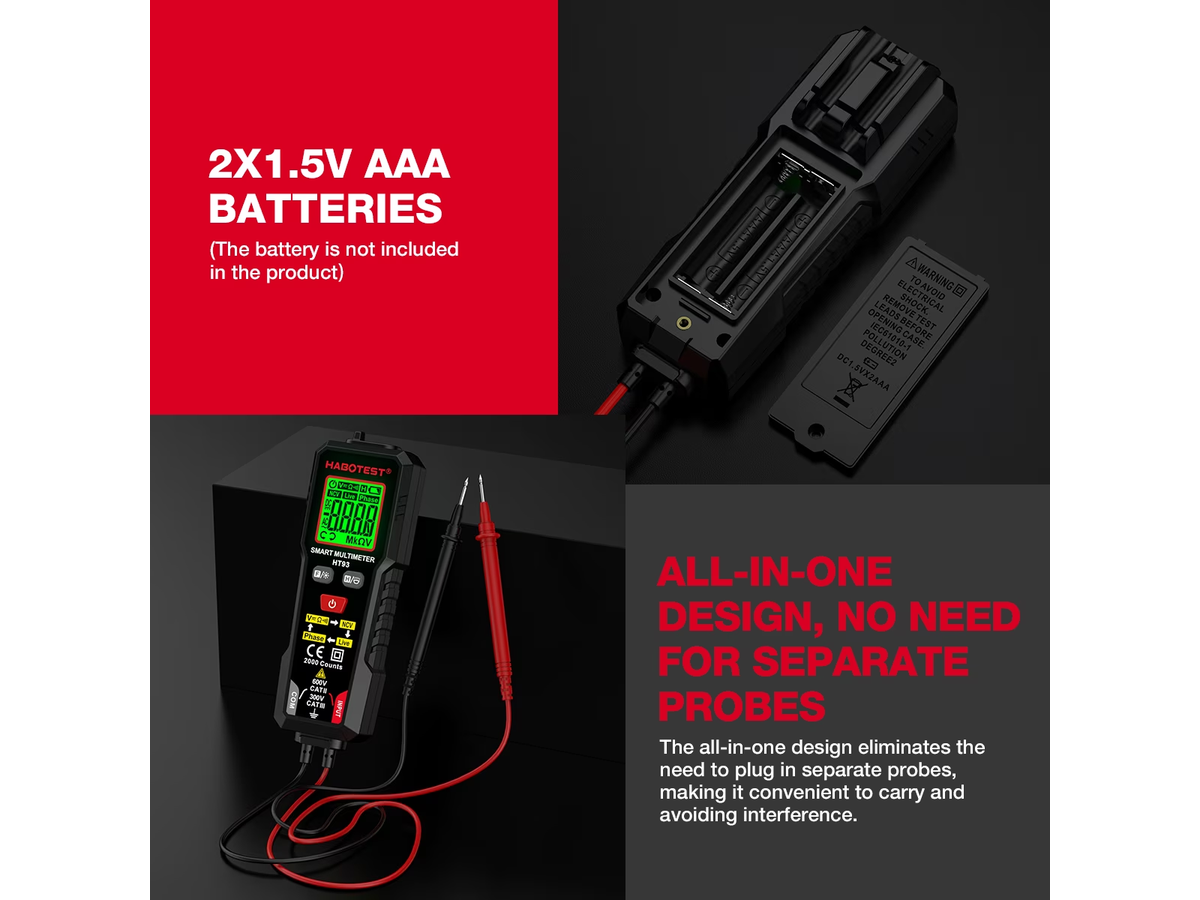

- Supply: 2 x 1.5V AAA batteries (Not included)
- Safety Rating: EN61010-2-030 EN61010-2-033 CAT III 600V
- Pollution Level: 2
- Altitude: ＜2000m
- Maximum Voltage Allowed Between Measuring End and Earth: 600V
- Over-Indication: "OL" is displayed
- Input Polarity Indication: "-" sign is automatically displayed
Package Contains
- 1 x Smart Multimeter
- 2 x Test Leads
