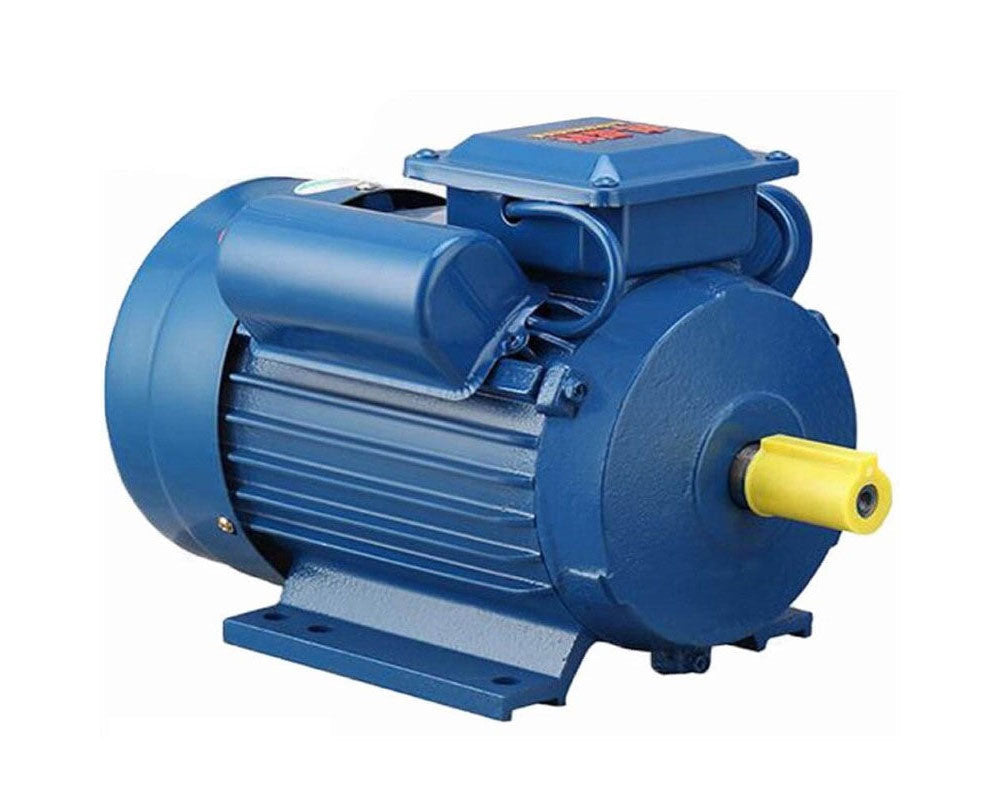

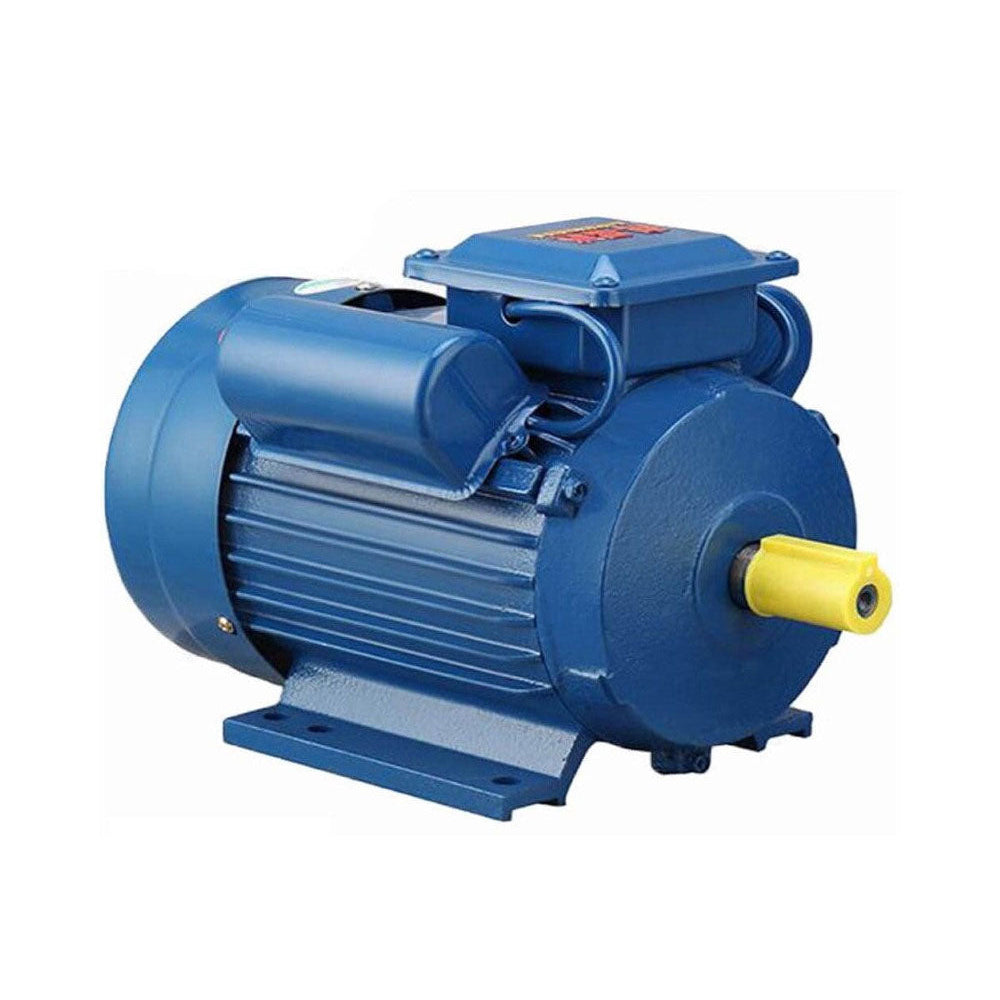

Cast Iron Housing Electric Motor Electric single phase motor 3hp 2.2kw 2800rpm

Single-Phase Dual-Capacitor Electric motor

Key Specifications:

Horsepower: 3.0 HP Electric motor
Rated Power: 2.2 kW
Rated Voltage: 230 V
Frequency: 50 Hz
Rotating Speed: 2800 r/min
Current: 13.5 A
Starting Capacitor: 300 µF / 230 V

Physical Dimensions:

Shaft Size: 24 mm
Shaft Length: 50 mm
Keyway Slot: 8 mm
Baseplate Size: 165 mm W x 170 mm L
Mounting Holes: 140 mm x 125 mm or 140 mm x 100 mm
Body Size (without shaft): 290 mm L x 200 mm W x 220 mm H

Protection and Insulation:

Protection Class: IP44
Insulation Class: B

Versatile Applications:

This electric motor is widely used in various applications, including:

Air Compressors
Pumps
Fans
Refrigerators
Medical Instruments
Small Machines

Electric motor is designed for environments where only a single-phase power supply is available, this Electric motor provides reliable performance and efficiency across different settings.
