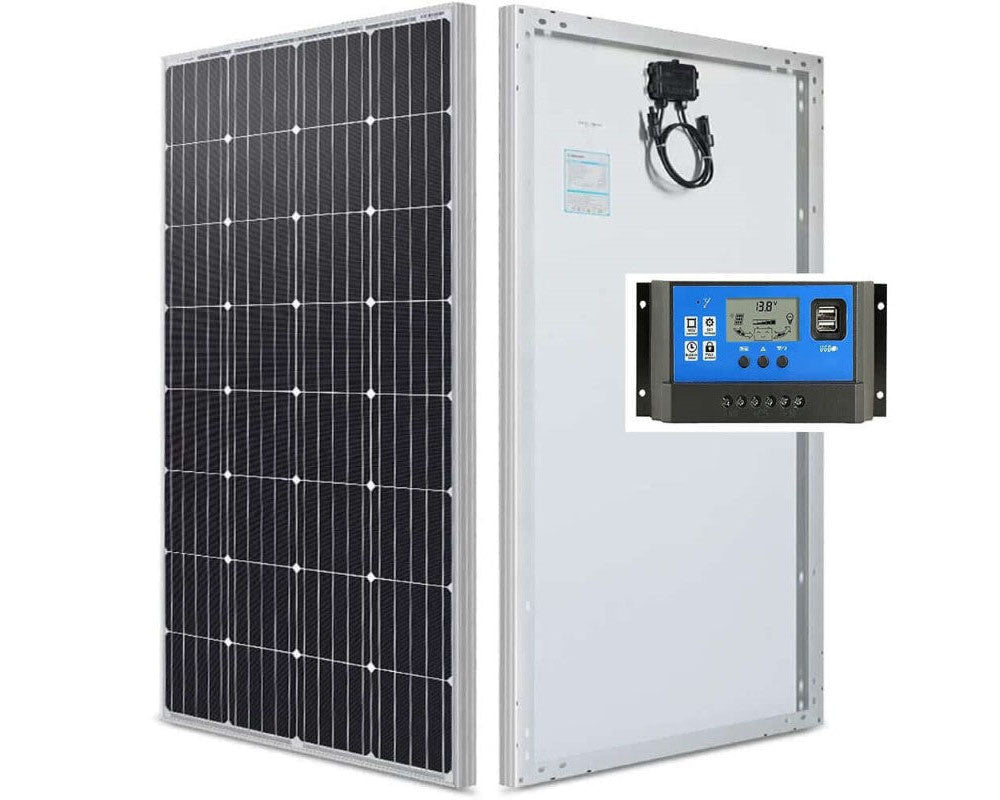

Solar Panel 150W


150W solar panels are manufactured with high efficiency A-grade Mono-crystalline Trinasolar® cells.


The junction box attached to the back of the solar panel has a weather tight seal with an Ingress Protection rating of 65, a built-in bypass diode in the junction box provided added protection to panels connected in series during partial shading on an array. This solar panel is also supplied with 900mm of cable for each positive/negative with the standard MC4 solar panel connectors crimped onto each cable.


Specifications for 150W Mono-crystalline Solar Panel:


Waterproof: IP65
3.2mm tempered glass
Material: Mono Crystalline
Voltage: 12V to 18V
Power: 150W
Open Circuit Voltage (volts): 22.65V
Short Circuit Current (Isc): 9.06V
Rated Current(Imp): 8.36A
Cells: 36 Cells
Cell Size: 156 x 156mm
Frame: Heavy duty aluminum

Power Tolerance - 3%
Cell Efficiency: 20.50%
Module Efficiency STC - 18.47%
Operating Temperature Range - -40C - +85C
Cell Type: Mono-crystalline Trinasolar®
Maximum System Voltage - 1000V
Dimensions : 1480*680*35MM
Weight: 12 kg

Temperature Coefficient of Pmax : -0.435%/C
Temperature Coefficient of Voc : -0.35%/C
Temperature Coefficient of Isc : 0.043%/C
Normal Opertaing Cell Temperature : 47C +/- 2C

Wind Load: 2400Pascal
Snow Load: 5400Pascal
Warranty: 10Years

Application Class: Class A
Fire Rating: Class C

Packaging:
1 X Solar Panel
4 x BRACKET
12 x SCREW KIT

We also sell 20W 30W 50W 100W 150W 200W 260W 280W 320W Solar panel Please check on our store
