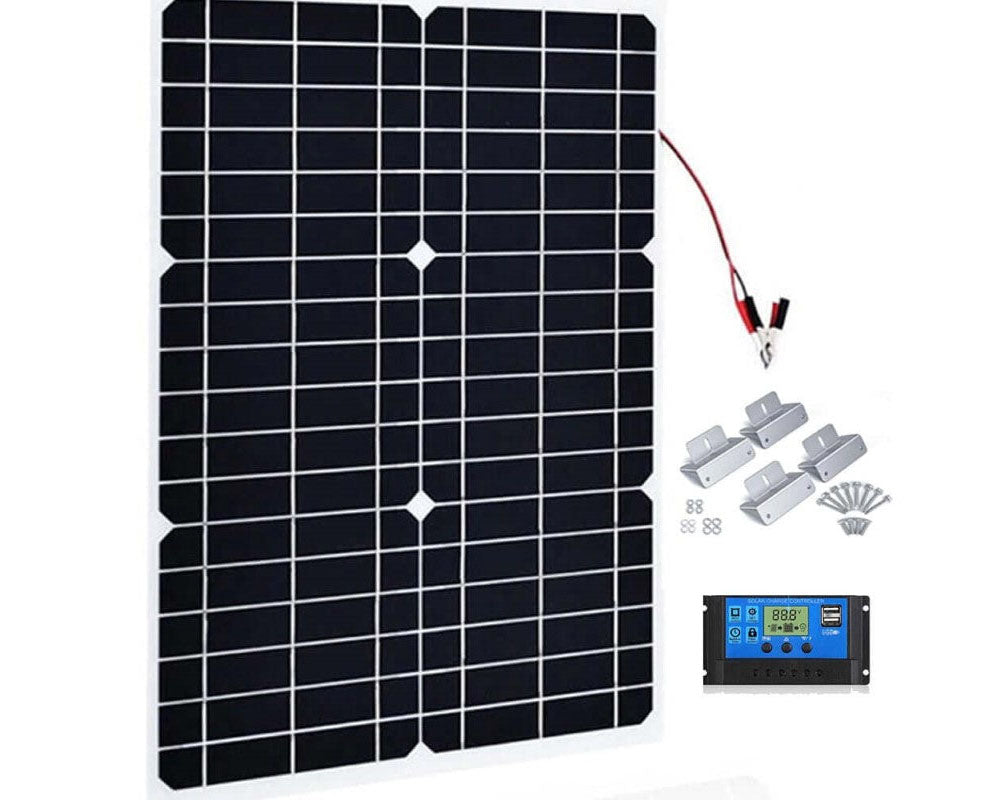

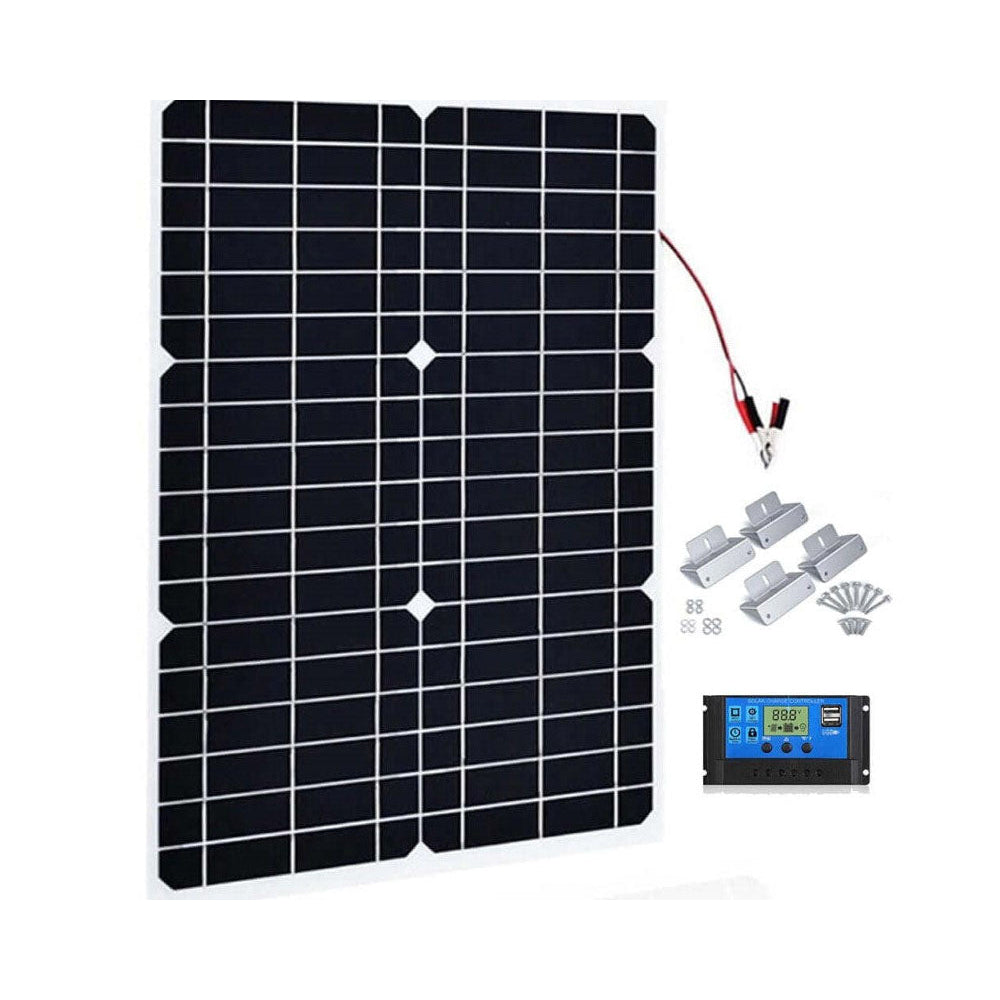

120W Monocrystalline Solar Panel
Product Overview:
The 120W Monocrystalline Solar Panel is engineered with high-efficiency A-grade Trinasolar cells, providing reliable and efficient power generation for a variety of applications. This solar panel features advanced technology to ensure excellent performance and durability, even in challenging conditions.
Key Features:
- High Efficiency: Utilizes mono-crystalline silicon cells with a cell efficiency of 20.50%, ensuring maximum power output.
- Weather Protection: The junction box is equipped with a weather-tight seal (IP65 rating) and a built-in bypass diode, providing added protection against shading and ensuring reliability during operation.
- Robust Design: Designed to withstand harsh environmental conditions, making it suitable for flat solar battery applications.
- Easy Installation: Comes with 900mm cables with standard MC4 connectors, ensuring easy setup and connection.
Specifications:
- Chemical Type: Mono-crystalline silicon solar cell
- Output Power: 120W
- Operating Voltage: 18V
- Short Circuit Current: 7.19A
- Max Power Current: 6.66A
- Open Circuit Voltage: 21.6V
- Dimensions: 1080 x 700 x 30 mm
- Weight: 7.2 kg
- Power Tolerance: ±3%
- Cell Efficiency: 20.50%
- Module Efficiency STC: 18.47%
- Operating Temperature Range: -40°C to +85°C
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
- Normal Operating Cell Temperature (NOCT): 47°C ± 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Warranty: 10 Years
- Application Class: Class A
- Fire Rating: Class C
Packaging Includes:
- 1 x Solar Panel
- 4 x Brackets
- 12 x Screw Kit
Applications: This solar panel is suitable for various applications, including:
- Residential solar energy systems
- RVs and mobile homes
- Remote power generation
- Off-grid solar setups
Available Sizes: We also offer solar panels in multiple sizes: 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W. Please check our store for more options.
The 120W Monocrystalline Solar Panel combines efficiency and durability, making it an excellent choice for anyone looking to harness solar energy effectively. Enjoy peace of mind with a 10-year warranty and dependable performance for years to come!
