120W Mono-crystalline Solar Panel
Upgrade your renewable energy setup with the high-efficiency 120W Mono-crystalline Solar Panel, featuring Trinasolar® cells for superior performance.
Features:
- High-efficiency A-grade Mono-crystalline Trinasolar® cells.

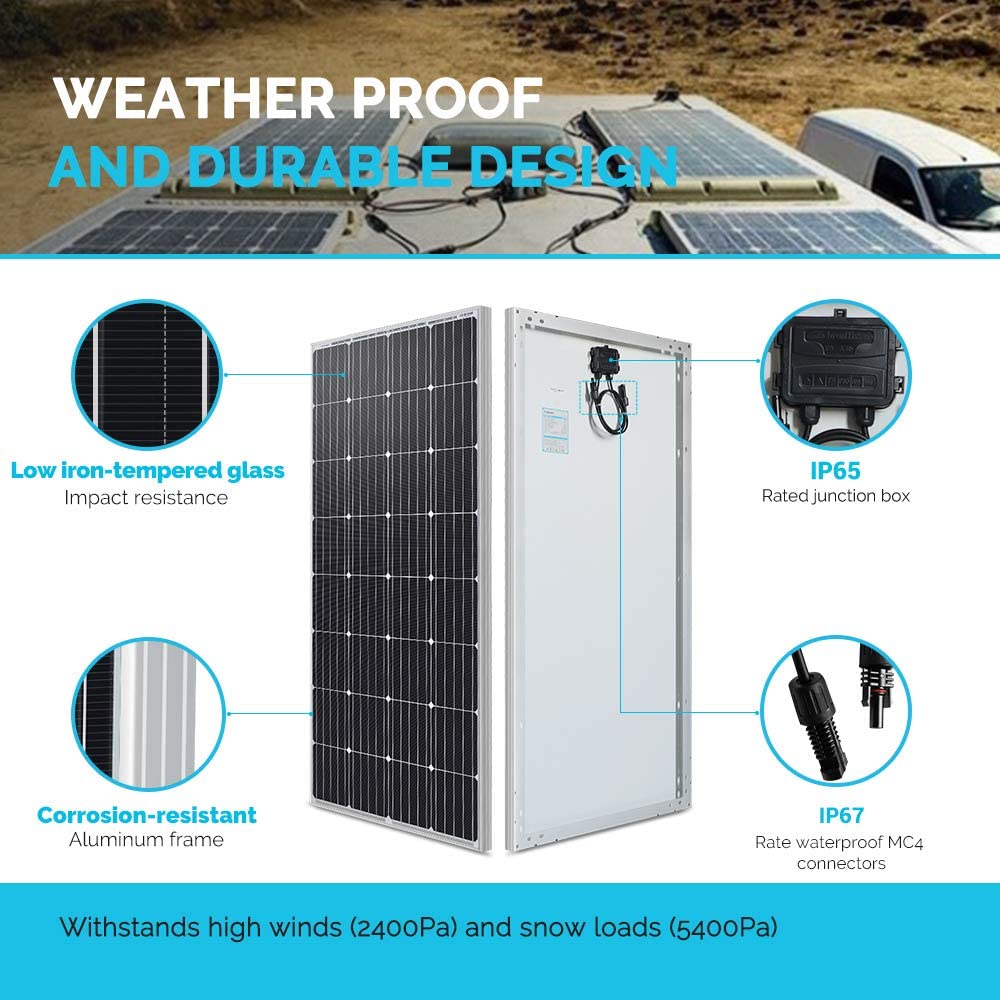

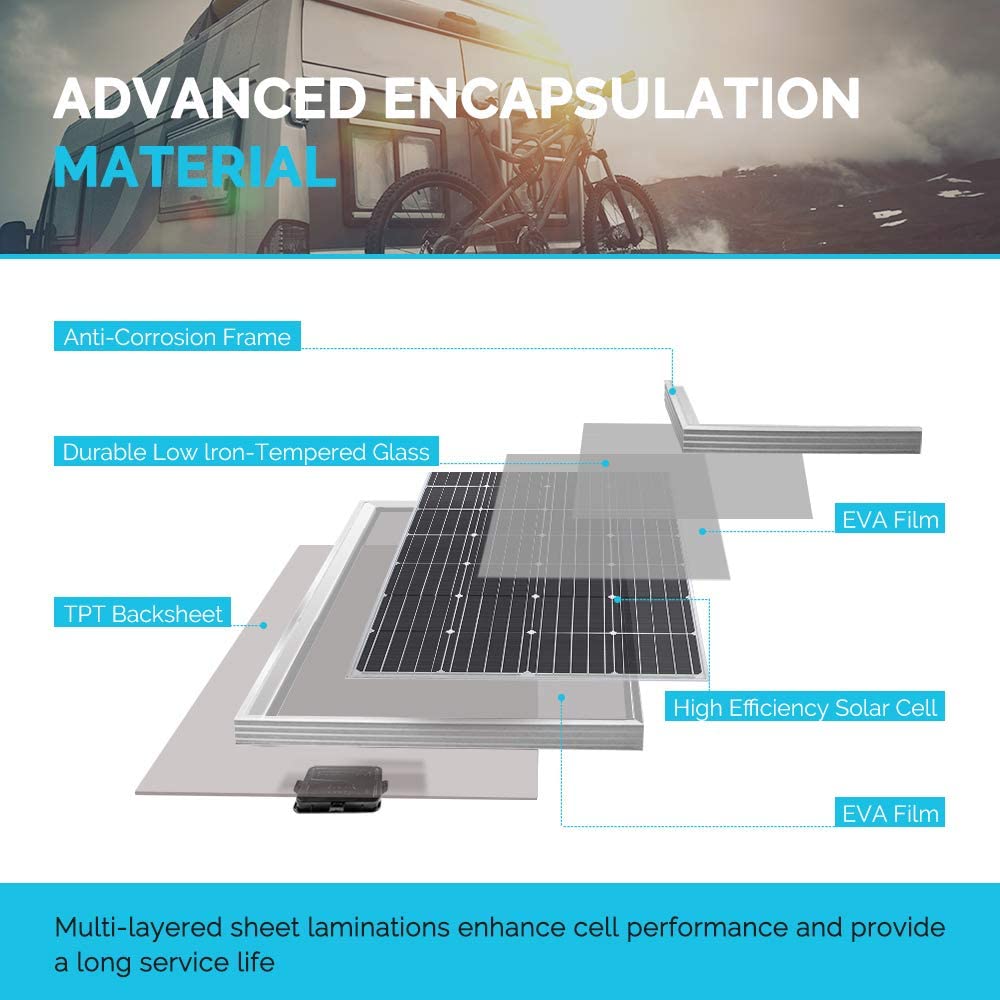

- 3.2mm safety/tempered glass with low-iron content for maximum light absorption.
- Corrosion-resistant anodized aluminium frame for strength and easy mounting.
- Weather-tight junction box with IP65 Ingress Protection rating.

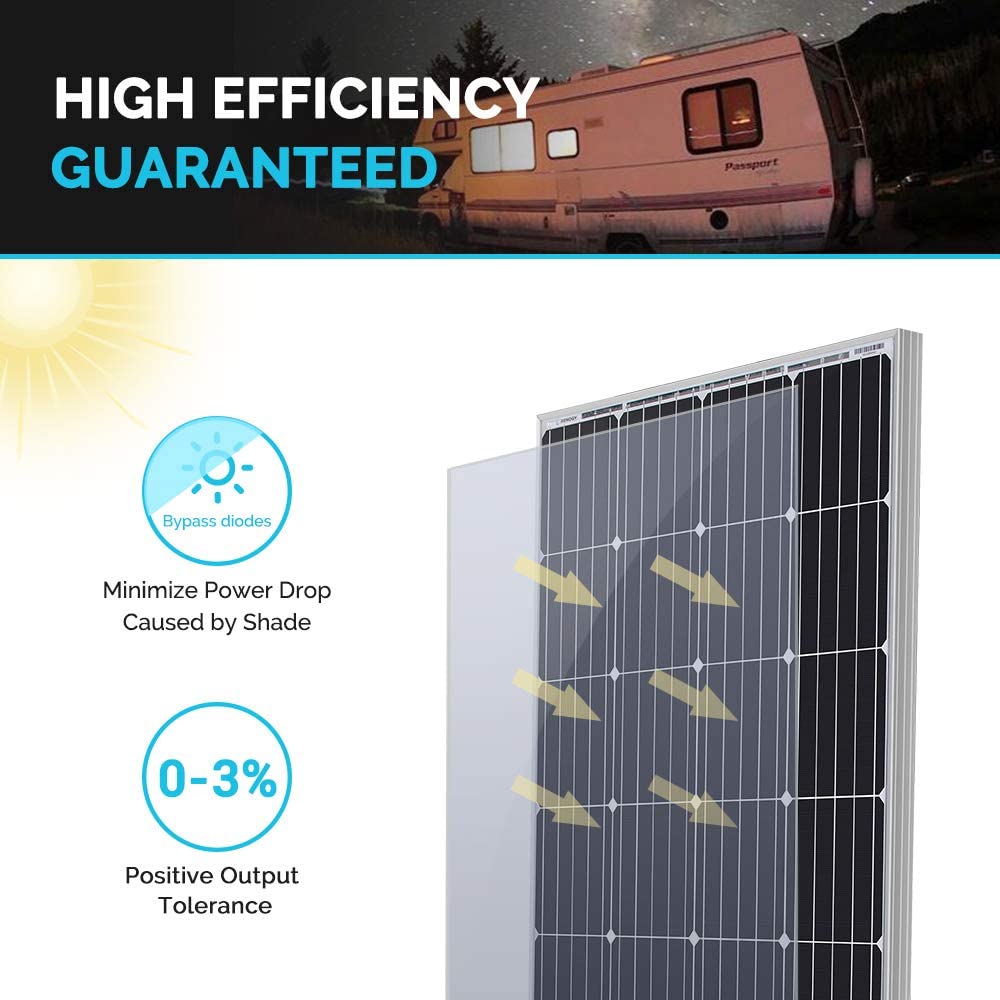

- Built-in bypass diode in the junction box for added protection during partial shading.
- 900mm cables with MC4 connectors crimped onto each cable.
Specifications:
-
Chemical Type: Mono-crystalline silicon solar cell
-
Structure Type: Homogeneous junction solar cell
-
Status of Use: Flat solar battery
-
Output Power: 120W
-
Operating Voltage: 18V
-
Short Circuit Current: 7.19A
-
Max Power Current: 6.66A
-
Open Circuit Voltage: 21.6V
-
Dimensions: 108 x 70 x 3 cm
-
Weight: 7.2 kg
-
Power Tolerance: -3%
-
Cell Efficiency: 20.50%
-
Module Efficiency STC: 18.47%
-
Operating Temperature Range: -40°C to +85°C
-
Cell Type: Mono-crystalline Trinasolar®
-
Temperature Coefficient of Pmax: -0.435%/°C
-
Temperature Coefficient of Voc: -0.35%/°C
-
Temperature Coefficient of Isc: 0.043%/°C
-
Normal Operating Cell Temperature: 47°C ± 2°C
-
Wind Load: 2400 Pascal
-
Snow Load: 5400 Pascal
-
Warranty: 10 Years
-
Application Class: Class A
-
Fire Rating: Class C
Package Includes:

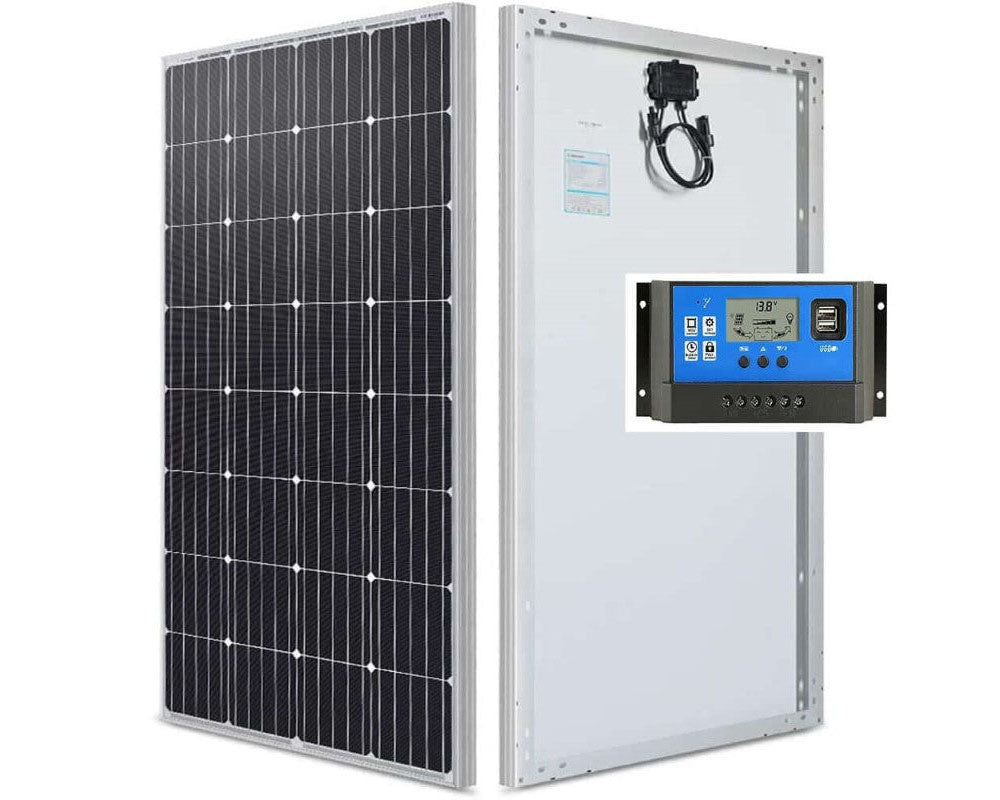

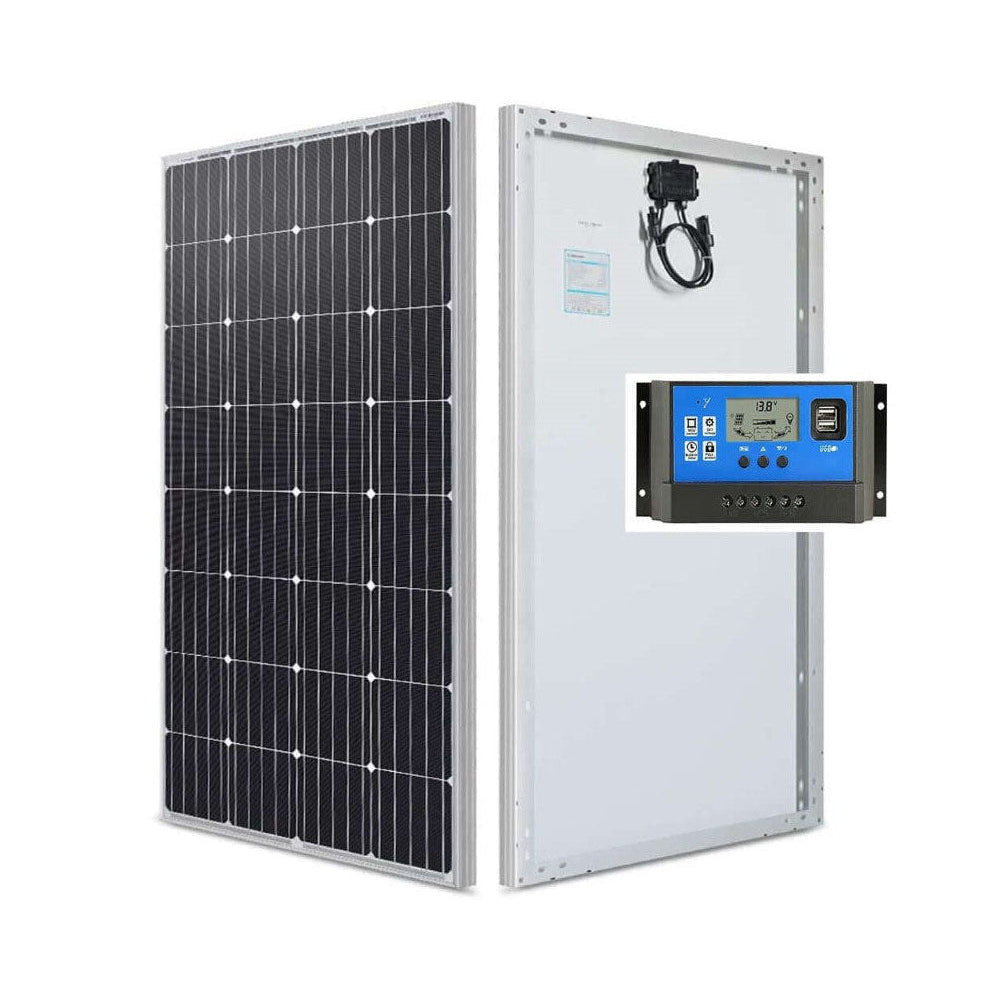

- 1 x High-Efficiency 120W Solar Panel
- 1 x 50A Solar Controller
