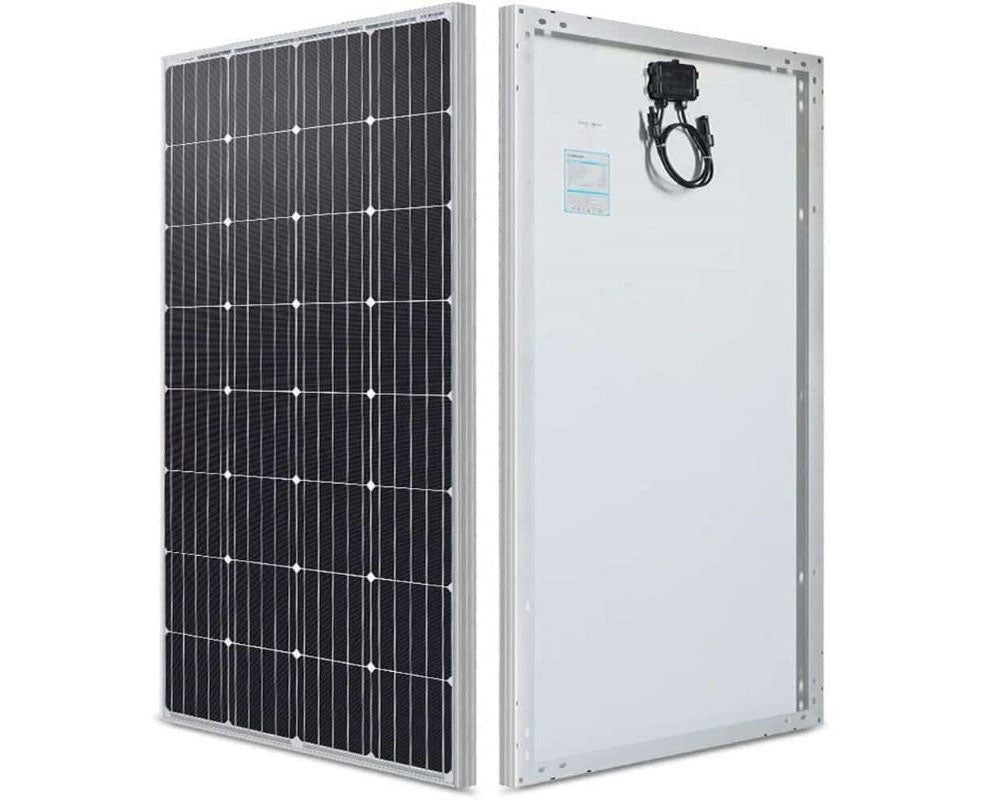

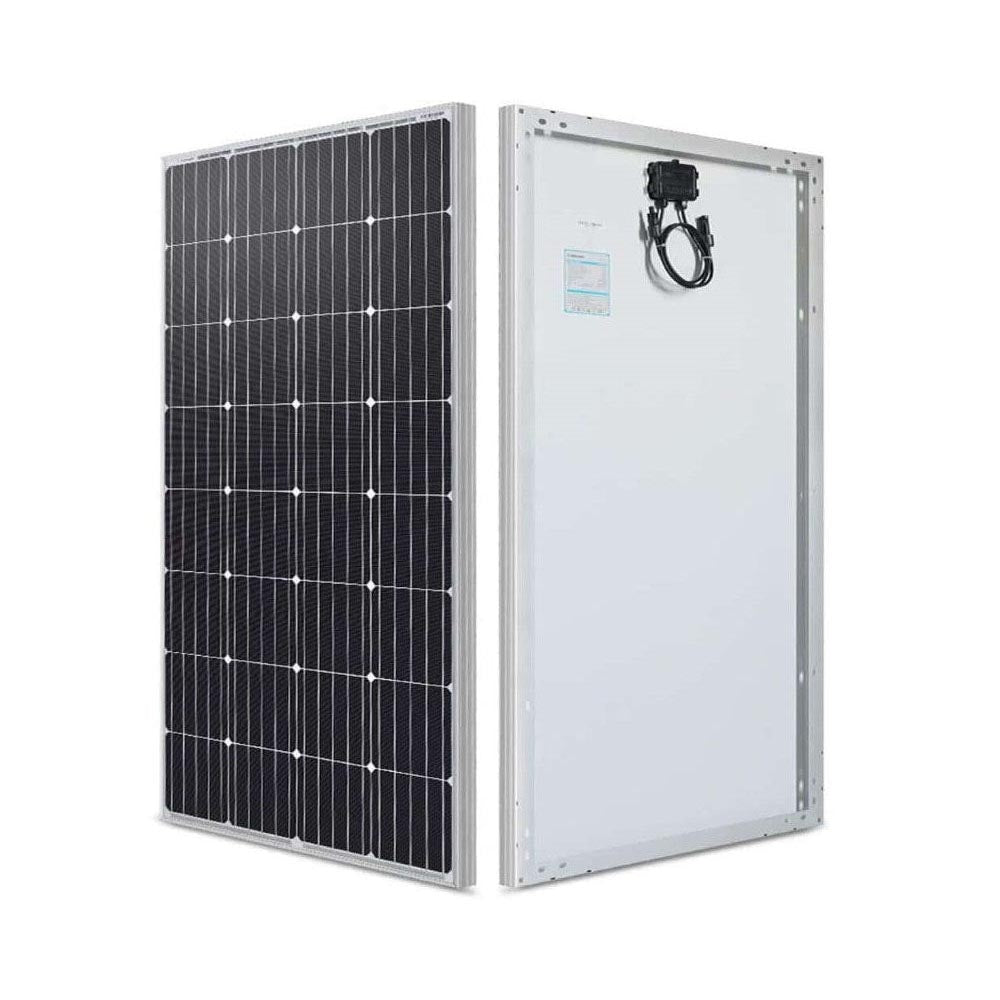

200W 36V Monocrystalline Solar Panel for House, RV, Boat, Back-Up System 200W Monocrystalline Solar Panel
Product Overview:
The 200W Monocrystalline Solar Panel is designed for maximum efficiency and durability, utilizing high-efficiency A-grade Trinasolar® cells. This panel is engineered with a robust aluminum alloy frame and a weather-tight junction box, making it suitable for various applications, from residential solar installations to outdoor setups.
Key Features:
- High Efficiency Cells: Equipped with A-grade mono-crystalline cells that provide 20.50% cell efficiency for optimal energy output.
- Robust Construction: The panel features a strong aluminum alloy frame, ensuring long-lasting durability and resistance to environmental conditions.
- Weather Protection: With an IP65 rating, the junction box is sealed against moisture and dust, providing reliable performance in harsh weather.
- Bypass Diode: A built-in bypass diode offers added protection for panels connected in series during partial shading, enhancing overall performance.
- Easy Installation: Comes with 900mm pre-installed cables and standard MC4 connectors for quick and straightforward installation.
Specifications:
- Max Power (Pmax): 200W ± 3%
- Max Power Voltage (Vmp): 36V
- Max Power Current (Imp): 5.56A
- Open Circuit Voltage (Voc): 43.2V
- Short Circuit Current (Isc): 6.1A
- Max System Voltage: 1000V
- Max Series Fuse: 10A
- Power Tolerance: ±3%
- Cell Type: Mono-crystalline Trinasolar®
- Module Efficiency STC: 18.47%
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 1590 x 820 x 35 mm
- Weight: 13.3 kg
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
- Normal Operating Cell Temperature (NOCT): 47°C ± 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Warranty: 10 Years
- Application Class: Class A
- Fire Rating: Class C
Applications: Ideal for a variety of applications, including:
- Residential solar energy systems
- RVs and motorhomes
- Boats and marine applications
- Remote power generation
- Off-grid solar solutions
Available Sizes: We also offer solar panels in various sizes, including 20W, 30W, 50W, 100W, 150W, 260W, 280W, and 320W. Please check our store for more options.
The 200W Monocrystalline Solar Panel provides a reliable and efficient energy solution, backed by a 10-year warranty for peace of mind. Upgrade your solar energy system today!
