Solar Panel 200W Monocrystalline - The Shopsite

200W High-Efficiency Mono-crystalline Solar Panel with Trinasolar® Cells

Our 200W solar panel is crafted with high-efficiency A-grade Mono-crystalline Trinasolar® cells, ensuring superior solar energy production. Ideal for various applications, it features robust construction and easy installation, making it perfect for both residential and commercial use.

Features:

High Efficiency: Manufactured with A-grade Mono-crystalline Trinasolar® cells, offering excellent solar energy conversion efficiency.

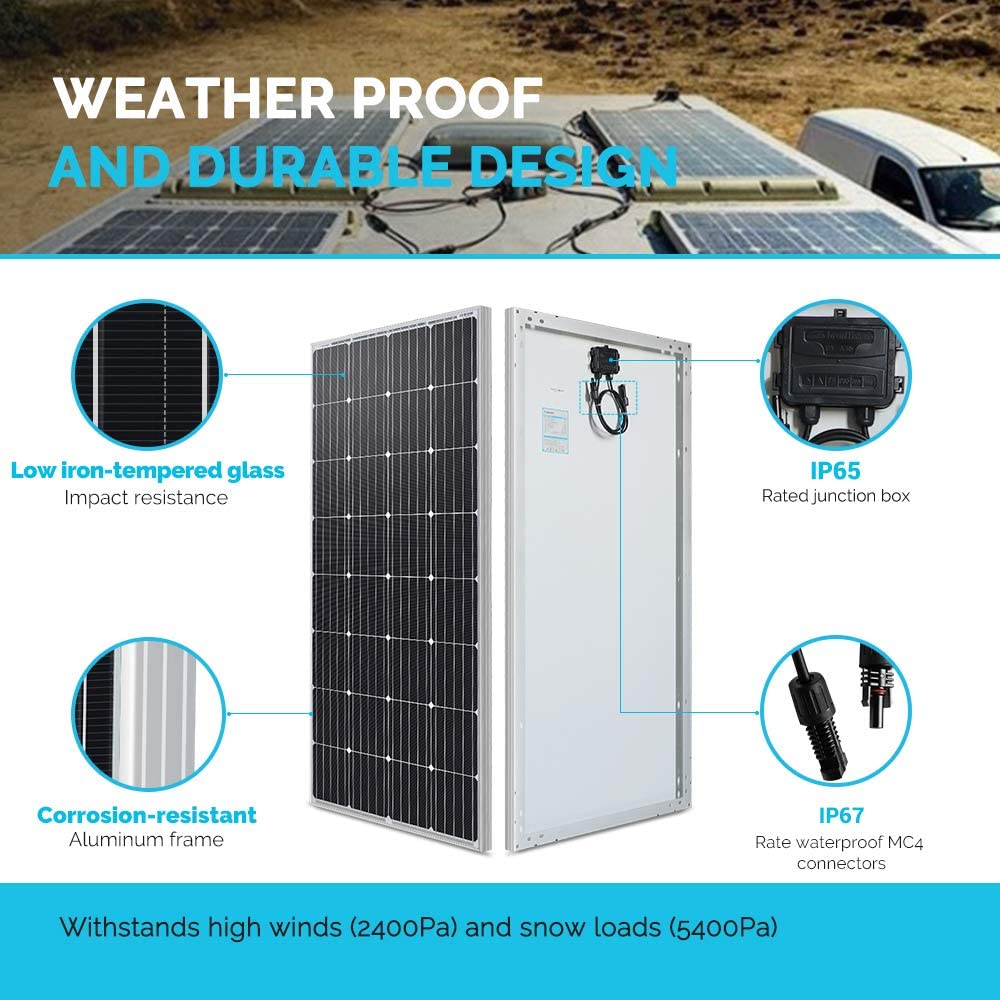

Reliable Protection: The junction box with a weather-tight seal has an IP65 rating and includes a built-in bypass diode for protection against partial shading. Supplied with 900mm of cable for each positive/negative terminal, with standard MC4 connectors for easy and secure connections.
Durable Construction: Designed with 3.2mm tempered glass and a corrosion-resistant frame, this panel is built to withstand harsh weather conditions and provide long-term durability.

Specifications:

Waterproof: IP65
3.2mm tempered glass
Max Power (Pmax): 200W +/- 3%
Max Power Voltage (Vmp): 36V
Max Power Current (Lmp): 5.56A
Open Circuit Voltage (Voc): 43.2V
Short Circuit Current (Isc): 6.1A
Max System Voltage: 1000V
Max Series Fuse: 10A
Power Tolerance: ±3%
Cell Efficiency: 20.50%
Module Efficiency STC: 18.47%
Operating Temperature Range: -40°C to +85°C
Cell Type: Mono-crystalline Trinasolar®
Dimensions: 1580*810*30mm
Weight: 13.3kg
Temperature Coefficient of Pmax: -0.435%/°C
Temperature Coefficient of Voc: -0.35%/°C
Temperature Coefficient of Isc: 0.043%/°C
Normal Operating Cell Temperature: 47°C ± 2°C
Wind Load: 2400 Pascal
Snow Load: 5400 Pascal
Application Class: Class A
Fire Rating: Class C

Packaging Content:

1 x High-Efficiency 200W Solar Panel
1 x 50A Solar Controller

We also offer solar panels in various capacities including 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W. Please check our store for more options.
