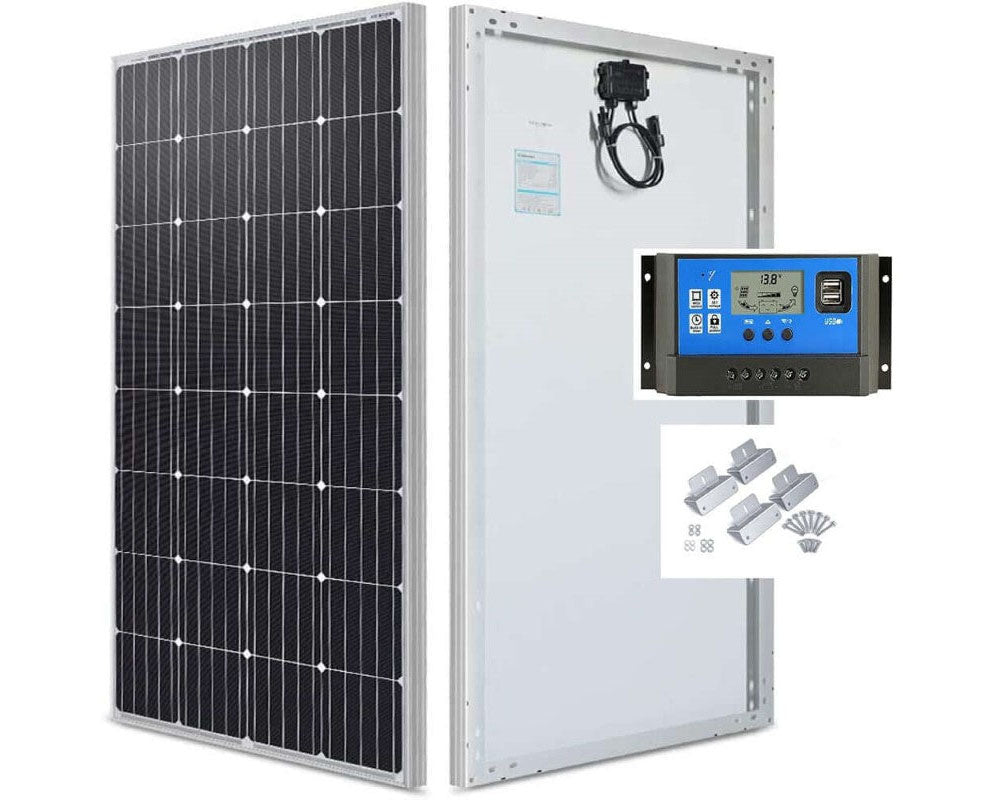

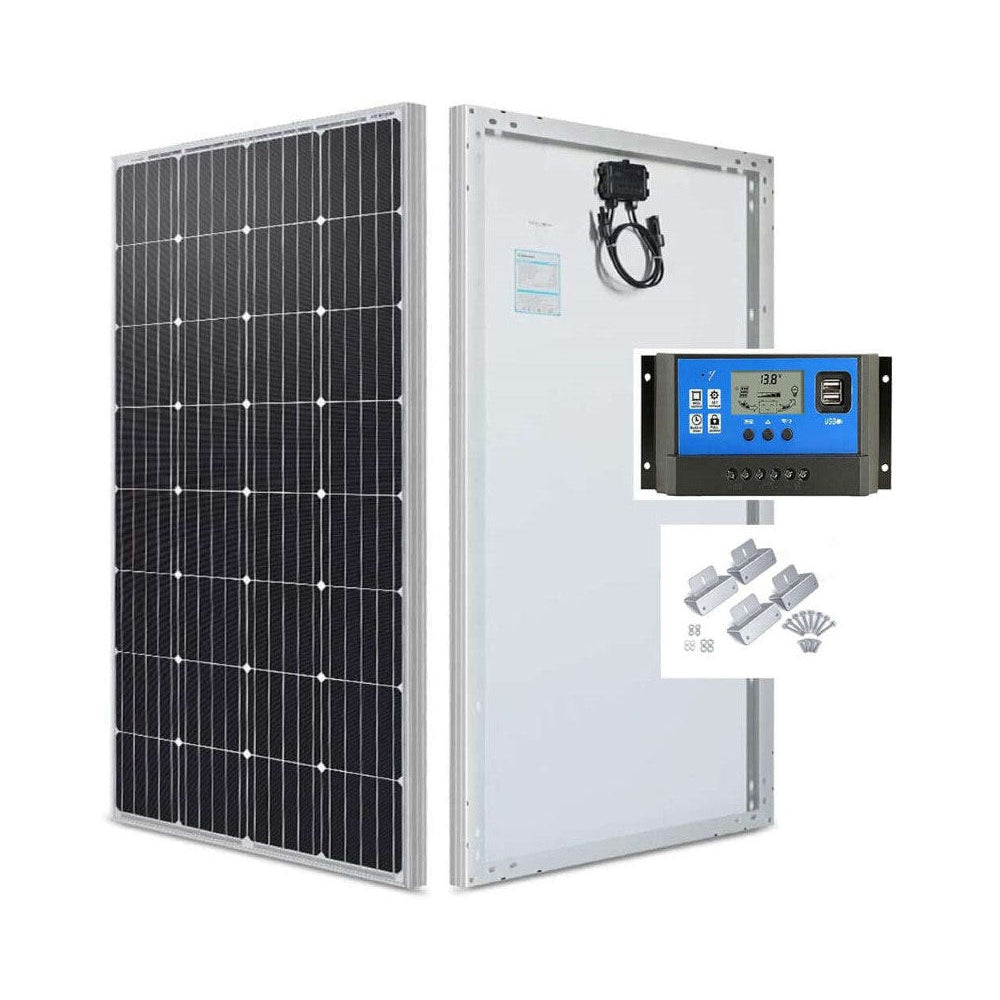

200W Mono-crystalline Solar Panel with Charge Controller
200W Mono-crystalline Solar Panel with Charge Controller
Harness the power of sunlight with the 200W Mono-crystalline Solar Panel by Trinasolar®. Built with high-efficiency A-grade mono-crystalline cells and featuring a robust design with IP65 waterproofing and tempered glass, it ensures reliable performance in various weather conditions.
Specifications:
- Waterproof: IP65
- 3.2mm tempered glass
- Max. Power (Pmax): 200W +/- 3%
- Max. Power Voltage (Vmp): 36V
- Max. Power Current (Imp): 5.56A
- Open Circuit Voltage (Voc): 43.2V
- Short Circuit Current (Isc): 6.1A
- Charge Controller Specs:
- 2 USB Outputs: 5V 2A each
- Rated Charge Current: 30A
- Rated Discharge Current: 10A
- Rated Voltage: Auto Detect 12/24V
- Max. PV Voltage: 50V
- Max. PV Input Power: 750W (12V) / 1500W (24V)
- Power Tolerance: +/- 3%
- Cell Efficiency: 20.50%
- Module Efficiency STC: 18.47%
- Operating Temperature Range: -40°C to +85°C
- Cell Type: Mono-crystalline Trinasolar®
- Maximum System Voltage: 1000V
- Dimensions: 1320 x 1010 x 35mm
- Weight: 13.3kg
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
- Normal Operating Cell Temperature: 47°C +/- 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Application Class: Class A
Packaging:
- 1 x Solar Panel 200W
- 4 x Bracket
- 12 x Screw Kit
- 1 x Solar Controller
We also offer a range of other wattages: 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, 320W. Please check our store for more options.
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
200W Mono-crystalline Solar Panel with Charge Controller
200W Mono-crystalline Solar Panel with Charge Controller
Harness the power of sunlight with the 200W Mono-crystalline Solar Panel by Trinasolar®. Built with high-efficiency A-grade mono-crystalline cells and featuring a robust design with IP65 waterproofing and tempered glass, it ensures reliable performance in various weather conditions.
Specifications:
- Waterproof: IP65
- 3.2mm tempered glass
- Max. Power (Pmax): 200W +/- 3%
- Max. Power Voltage (Vmp): 36V
- Max. Power Current (Imp): 5.56A
- Open Circuit Voltage (Voc): 43.2V
- Short Circuit Current (Isc): 6.1A
- Charge Controller Specs:
- 2 USB Outputs: 5V 2A each
- Rated Charge Current: 30A
- Rated Discharge Current: 10A
- Rated Voltage: Auto Detect 12/24V
- Max. PV Voltage: 50V
- Max. PV Input Power: 750W (12V) / 1500W (24V)
- Power Tolerance: +/- 3%
- Cell Efficiency: 20.50%
- Module Efficiency STC: 18.47%
- Operating Temperature Range: -40°C to +85°C
- Cell Type: Mono-crystalline Trinasolar®
- Maximum System Voltage: 1000V
- Dimensions: 1320 x 1010 x 35mm
- Weight: 13.3kg
- Temperature Coefficient of Pmax: -0.435%/°C
- Temperature Coefficient of Voc: -0.35%/°C
- Temperature Coefficient of Isc: 0.043%/°C
- Normal Operating Cell Temperature: 47°C +/- 2°C
- Wind Load: 2400 Pascal
- Snow Load: 5400 Pascal
- Application Class: Class A
Packaging:
- 1 x Solar Panel 200W
- 4 x Bracket
- 12 x Screw Kit
- 1 x Solar Controller
We also offer a range of other wattages: 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, 320W. Please check our store for more options.
